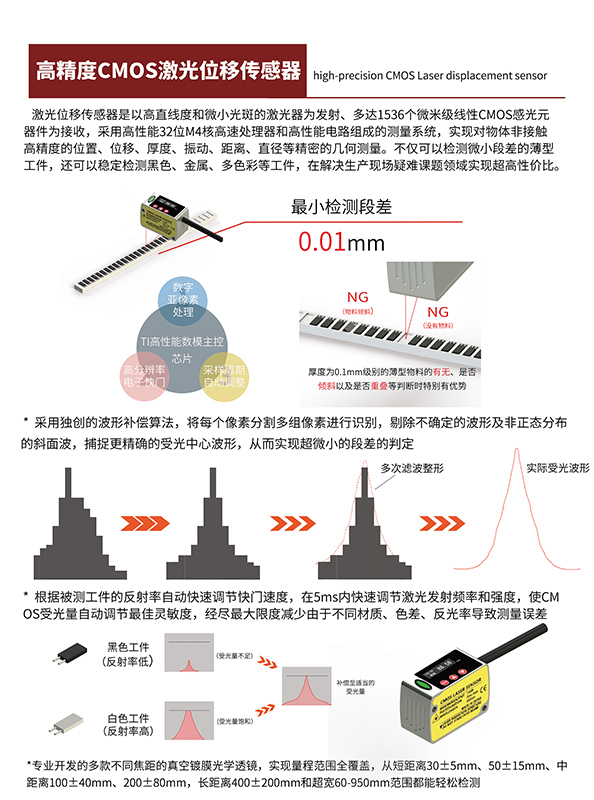

The laser displacement sensor is a measurement system composed of high linearity and tiny light spots, with up to 1536 micron-level linear CMOS photosensitive components as the reception, and uses a high-performance 32-bit M4 core high-speed processor and high-performance circuit to realize precise geometric measurements such as position, displacement, thickness, vibration, distance, and diameter of objects that are non-contact and high-precision. It can not only detect thin workpieces with small segments, but also stably detect black, metal, multi-color and other workpieces, achieving extremely high cost-effectiveness in the field of solving difficult problems on the production site.
Professionally developed a variety of vacuum-coated optical lenses with different focal lengths to achieve full coverage of the range, from short distances 30±5mm, 50±15mm, medium distances 100±40mm, 200±80mm, long distances 400±200mm and ultra-wide 60-600mm.
