Product Description
Product Introduction

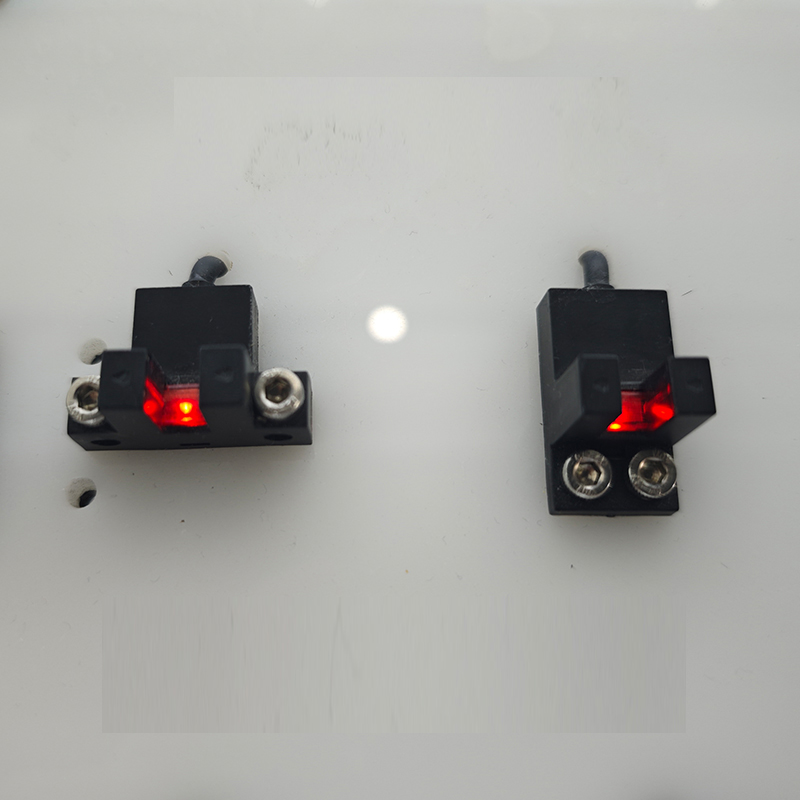

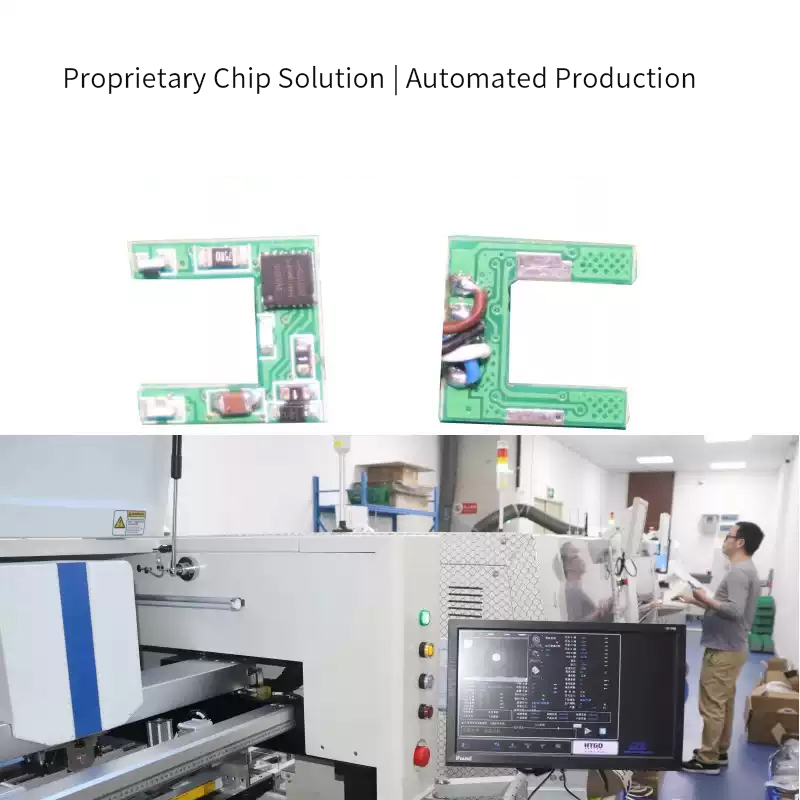

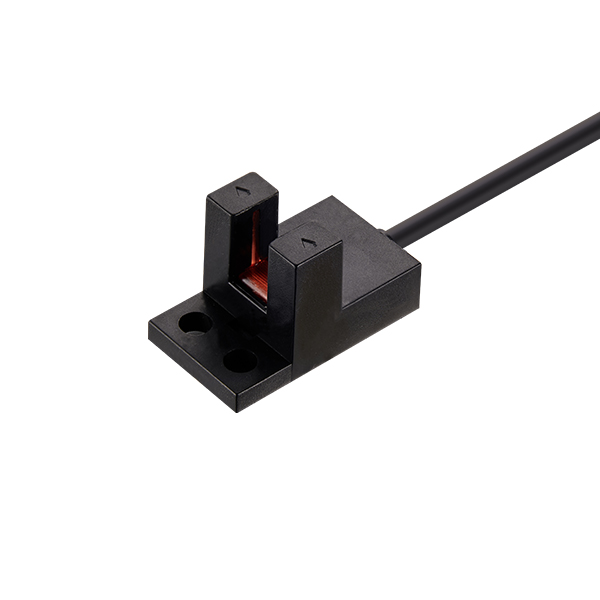

The Standard 67 Series Slot Type Sensor with Wire is a high-reliability photoelectric sensor designed for industrial automation applications requiring precise object detection. Featuring a rugged housing, integrated wiring, and adjustable sensitivity, this sensor ensures stable performance in harsh environments such as manufacturing, packaging, and logistics.

Key Features
Robust Slot-Type Design – U-shaped through-beam sensing for accurate detection.
Pre-Integrated Wire Connection – Reduces installation time and wiring errors.
High Sensing Accuracy – Detects small or fast-moving objects reliably.
Durable Construction – IP67-rated for dust and water resistance.
Wide Voltage Compatibility – Operates on 12-24V DC (standard industrial power).
Multiple Output Options – NPN, PNP, or relay outputs available.

Technical Specifications
| Parameters | Specifications |
| Model Series | Standard 67 |
| Detection Method | Through-beam (Slot Type) |
| Sensing Distance | Up to 10mm (adjustable) |
| Light Source | Infrared LED (880nm) |
| Response Time | ≤2ms |
| Power Supply | 12-24V DC (±10%) |
| Current Consumption | ≤25mA |
| Output Type | NPN/PNP (NO/NC selectable) |
| Protection Rating | IP67 (Dustproof & Waterproof) |
| Operating Temperature | -20°C to +60°C |
| Housing Material | Reinforced ABS Plastic |
| Cable Length | Standard 2m (custom lengths available) |

Electrical Characteristics
NPN Output: Sink output, max. 200mA
PNP Output: Source output, max. 200mA
Reverse Polarity & Overcurrent Protection
Mechanical Dimensions
Slot Width: 10mm (standard)
Housing Size: 67mm (L) × 25mm (W) × 20mm (H)
Mounting: M4 screw holes or DIN rail mounting
Working Principle

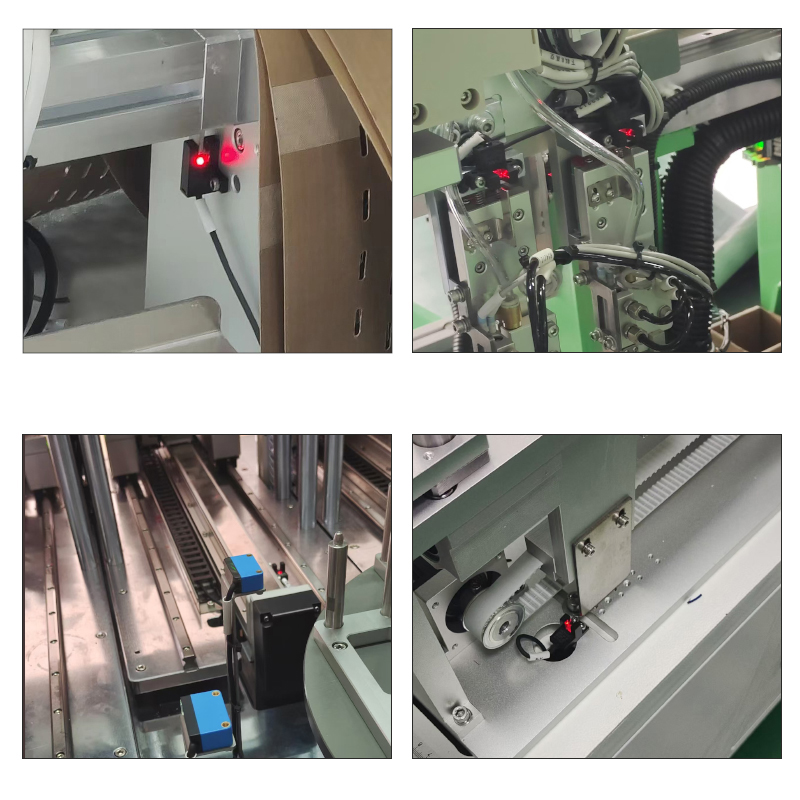

The Standard 67 Series operates using through-beam (slot-type) infrared sensing, where an emitter and receiver are housed in a single unit. When an object passes through the slot, it interrupts the infrared beam, triggering the sensor output.
Detection Modes
Light-ON Mode: Output activates when the beam is uninterrupted.
Dark-ON Mode: Output activates when the beam is blocked.
The sensor’s fast response time (≤2ms) ensures reliable detection in high-speed applications.
Equipped with two independent outputs
All models are equipped with two independent outputs - ON when the light is received and ON when the light is blocked, which can meet different output requirements according to different places of use.
Note: Only the used cables need to be connected (ON when light comes in or ON when blocked). For unused output lines, be sure to insulate them.

Various models

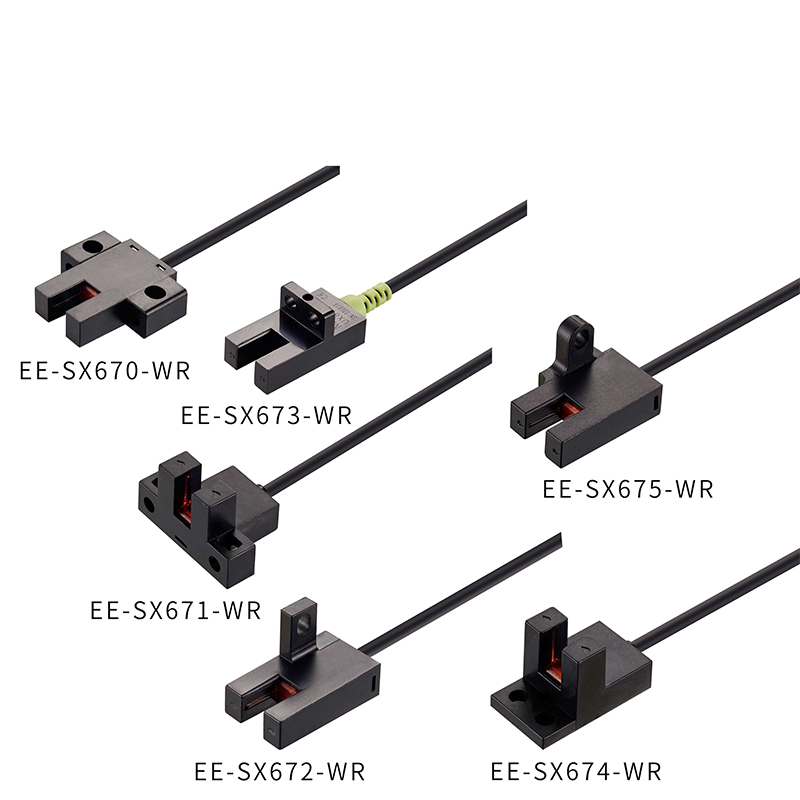

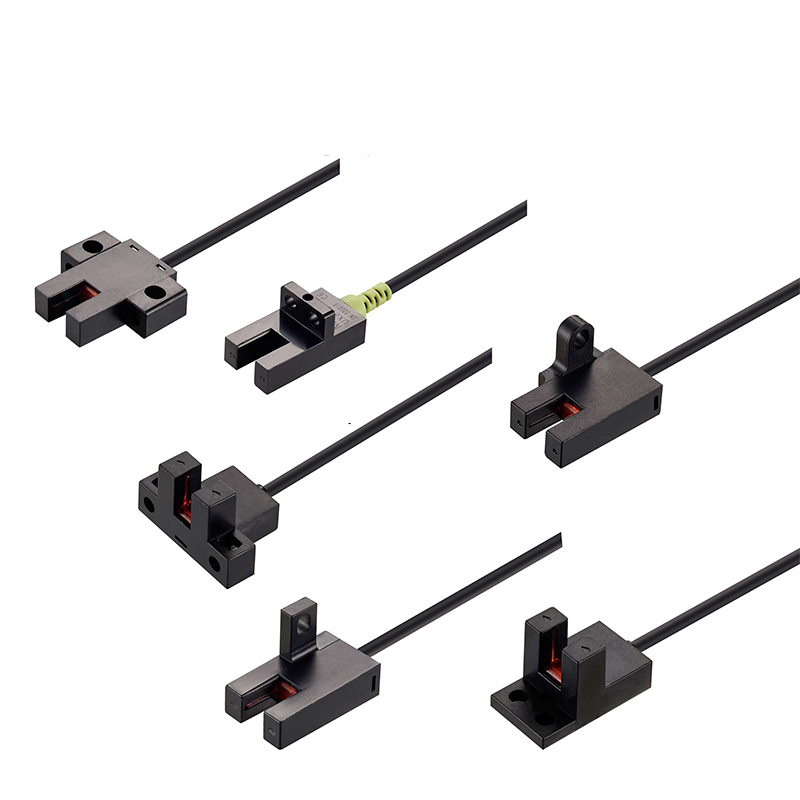

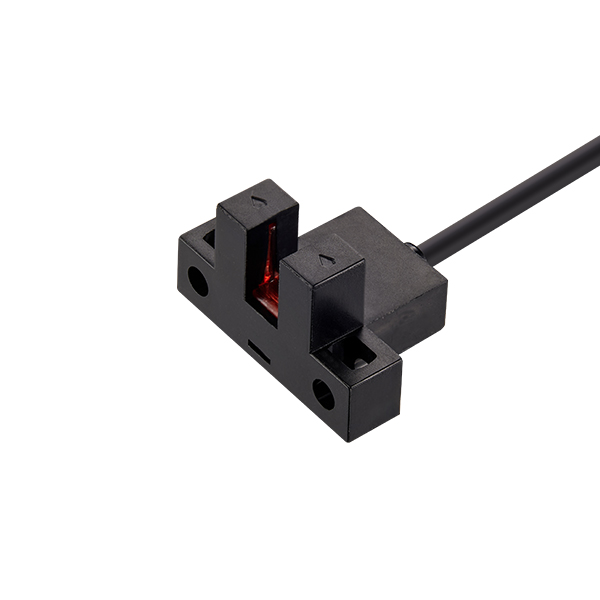

There are many types, with up to 6 shapes, from which you can choose the model that meets your installation conditions.

Wire lead out

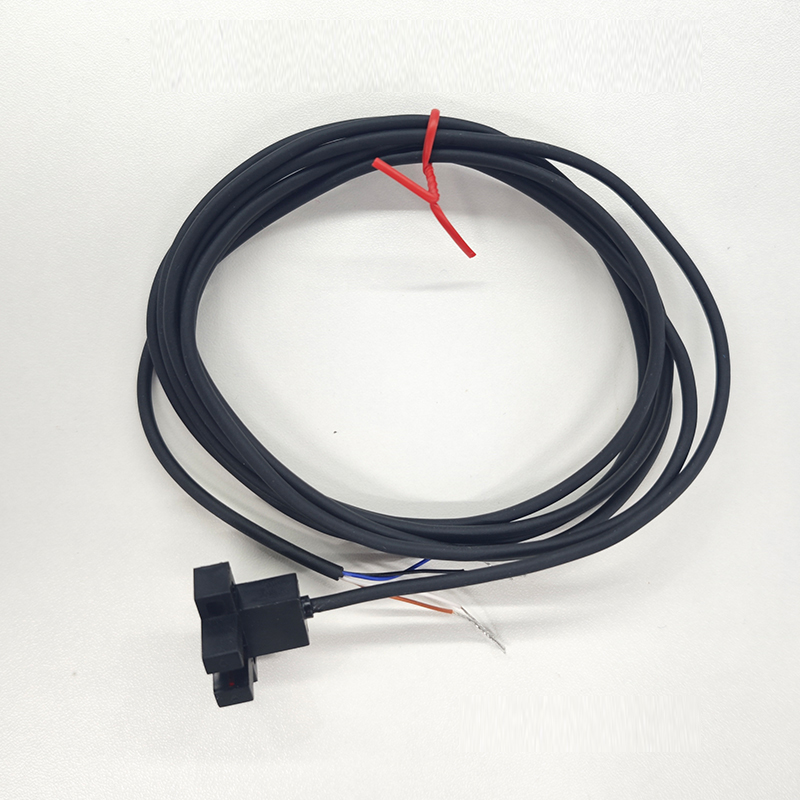

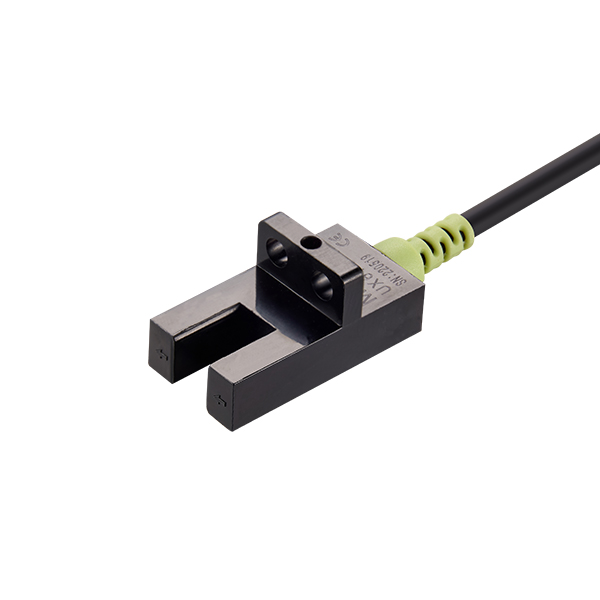

Standard 2M flexible wire, the wire length can be customized.
Optional bending resistant drag chain line-GR.

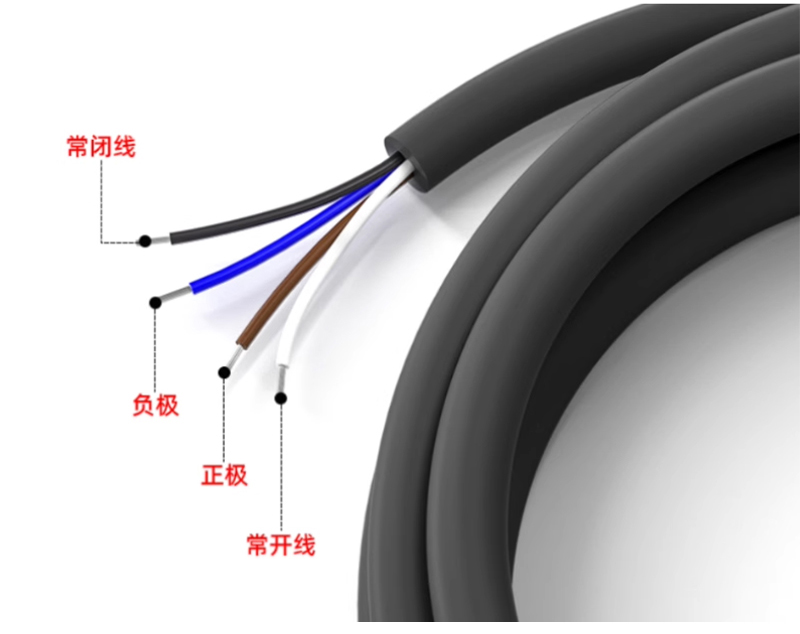

Optional white normally open and black normally closed-SX.
Wide voltage range
Power supply voltage range 5~24VDC:
High speed response
The response frequency is 3KHZ high-speed response.

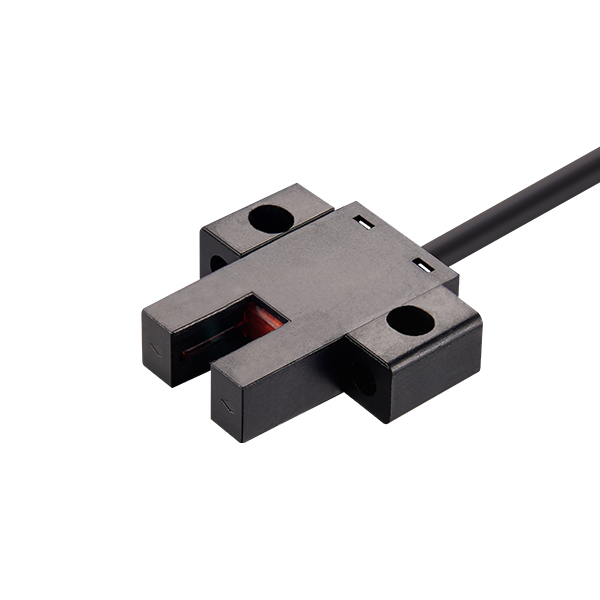

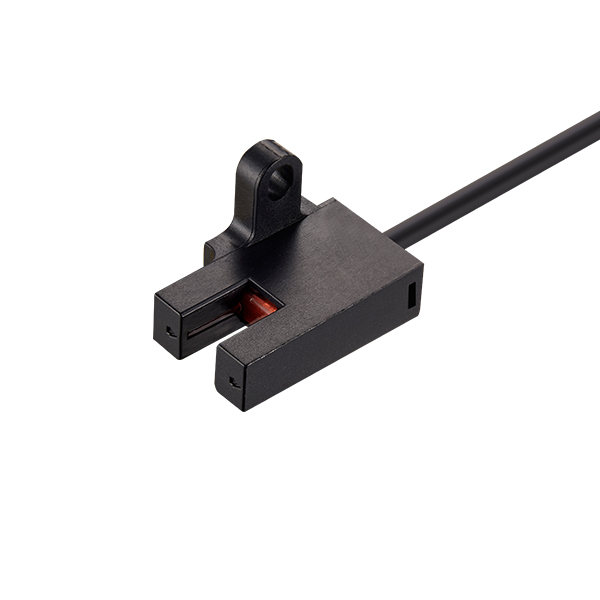

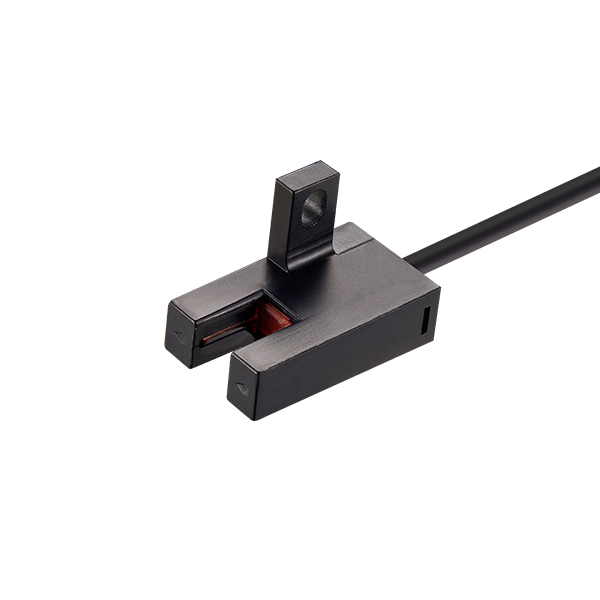

Kind
| Kind | K type | L type | T type | U1 type | Y type | Type T1 |
| Detection distance | 5mm (slot width) | |||||
| Standard test substance | Opaque objects above 0.8*1.2mm | |||||
| Repeat accuracy | 0.03mm or less | |||||
| Output mode | NPN open collector | |||||
| switch mode | L.on (light entry action)/D.on (light blocking action) switchable | |||||
| indicator light | The light turns off when an object is detected and turns on when no object is detected. | |||||
| response frequency | 3KHz | |||||
| light source | Infrared light | |||||
| Working voltage | 5-24VDC | |||||
| Residual voltage | 1.3V or less (when load current is 100mA) | |||||
| Current consumption | ≤8mA | |||||
| protection circuit | Surge protection, reverse polarity protection | |||||
| ambient light | Light receiving surface illumination: incandescent lamp: below 1000lux | |||||
| ambient temperature | Working: -25℃~+55℃ Storage: -30℃~+80℃, no freezing | |||||
| ambient humidity | When working: 5%~85%RH When storing: 5%~95%RH, no condensation | |||||
| Withstand voltage | AC, 1000V for 1 minute, between all power connection terminals and housing | |||||
| Vibration resistant | Frequency 10Hz~2,000Hz, double amplitude 1.5mm (maximum acceleration 196m/s2) 2 hours in each direction of XYZ | |||||
| Insulation resistance | Between all power connection terminals and the shell, more than 20MQ (based on DC250V) | |||||
| Protection level | IP50 | |||||
| Material | PC | |||||
| Outgoing method | 2M4 core cable | |||||
| Model NPN | UX670-WR | UX671-WR | UX672-WR | UX673-WR | UX674-WR | UX675-WR |
| Model PNP | UX670P-WR | UX671P-WR | UX672P-WR | UX673P-WR | UX674P-WR | UX675P-WR |
Circuit

DC line 4-wire NPN output

DC line 4-wire PNP output

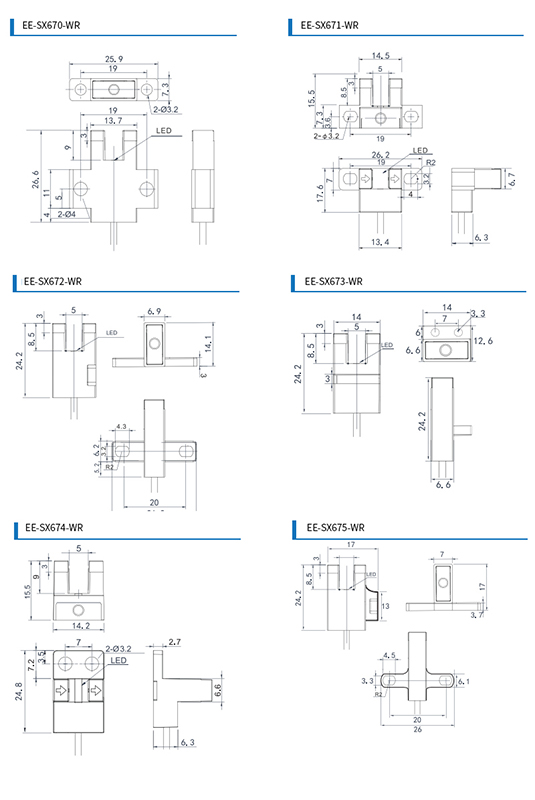

Overall dimensions (unit: mm)

UX670-WR

UX671-WR

UX672-WR

UX673-WR

UX674-WR

UX675-WR
