Product Description
Product Introduction
The Plug-In Type 67 Series Slot Sensor is an advanced and reliable sensor designed to offer superior detection capabilities for a wide range of applications. Engineered for high-precision, the sensor is ideal for monitoring, measuring, and controlling objects in automated systems. This product is highly versatile, offering seamless integration into existing control systems with minimal setup.
The Type 67 Slot Sensor is designed with a plug-in connection for easy installation, which significantly reduces setup time and simplifies maintenance. Its durable construction, compact design, and innovative sensing technology make it the perfect solution for industries requiring accuracy and reliability, such as manufacturing, robotics, and automated production lines.
Product Features
1. Plug-In Design for Easy Installation:
The plug-in feature ensures fast and convenient installation, reducing downtime and setup time. The sensor can be easily connected and integrated into existing systems with minimal effort.
2. High Sensitivity and Accuracy:
Featuring cutting-edge technology, the Type 67 Series Sensor offers high sensitivity and accuracy in detecting objects, providing precise data for industrial applications.
3. Durable and Reliable Construction:
Built to withstand tough industrial environments, the sensor boasts an IP67 rating for protection against dust and water ingress. Its rugged design ensures long-lasting performance in demanding conditions.
4. Wide Detection Range:
The sensor offers a broad detection range, making it suitable for a variety of tasks, from simple object detection to complex automation systems.
5. Low Power Consumption:
The Type 67 Series Slot Sensor is designed to consume minimal power, making it energy-efficient and cost-effective for continuous operations.
6. Multiple Output Options:
It supports various output configurations, such as digital or analog signals, which can be easily configured to match the needs of the system.
7. Compact and Space-Saving Design:
The compact size of the sensor makes it easy to integrate into small or tight spaces, perfect for systems with space constraints.
8. Robust Environmental Resistance:
The sensor is designed to perform in a wide range of temperatures and environmental conditions, ensuring reliability even in harsh or fluctuating environments.
Product Applications
The Plug-In Type 67 Series Slot Sensor is widely used in a variety of industrial and commercial applications, including:
Automated Manufacturing Lines:
The sensor is ideal for detecting objects on production lines, ensuring proper positioning, orientation, and tracking of products. It enhances the efficiency and accuracy of automated systems.
Robotic Systems:
Its compact design and high sensitivity make the sensor perfect for integration into robotic arms and other robotic systems, ensuring precise movements and operations in tasks such as pick-and-place, assembly, and packaging.
Material Handling Systems:
The sensor can detect items in conveyor belts, helping control and monitor the movement of materials, thereby optimizing the flow in material handling systems.
Logistics and Warehouse Automation:
In warehouses, the Type 67 Slot Sensor aids in inventory management by detecting objects and tracking movements, facilitating automatic sorting, packaging, and dispatching of products.
Security Systems:
The sensor can be used for intrusion detection in security systems, providing accurate and timely detection of unauthorized entry or movement.
Packaging and Inspection Systems:
In industries like food and beverage, pharmaceuticals, and electronics, the sensor can assist in quality control and packaging systems, ensuring products meet required standards.
FAQ
What is the primary advantage of the Plug-In Type 67 Series Slot Sensor over traditional sensors?
The main advantage is its plug-in design, which makes installation quicker and easier. The sensor’s high accuracy, durability, and versatility also contribute to its exceptional performance in various applications.
Can the Type 67 Slot Sensor work in harsh environmental conditions?
Yes, the Type 67 Slot Sensor is rated with an IP67 protection level, meaning it is resistant to dust and water ingress, making it ideal for use in challenging environments.
Is the sensor compatible with both digital and analog control systems?
Yes, the sensor offers multiple output options, including both digital and analog signals, making it flexible and compatible with a wide range of control systems.
What is the maximum detection range of the sensor?
The Type 67 Slot Sensor offers a broad detection range that can be customized depending on the specific needs of your application. Please refer to the product manual for detailed specifications on detection distances.
How energy-efficient is the Type 67 Series Sensor?
The sensor is designed with low power consumption in mind, which makes it an energy-efficient solution for continuous operation in industrial settings.
Can the sensor be used in robotic systems?
Absolutely! The compact design and high sensitivity of the Type 67 Series Slot Sensor make it perfect for integration into robotic systems, allowing for precise operations and movement detection.
What types of industries typically use the Type 67 Slot Sensor?
This sensor is commonly used in industries such as manufacturing, robotics, logistics, packaging, and security, among others.
How does the plug-in design impact maintenance?
The plug-in design simplifies maintenance by allowing quick replacement or upgrades of sensors without needing complex re-wiring or recalibration, reducing downtime and maintenance costs.
Equipped with two independent outputs
All models are equipped with two independent outputs - ON when light enters and ON when blocked, which can meet different output requirements according to different places of use.
Note: Only the used cables need to be connected (ON when light comes in or ON when blocked). For unused output lines, be sure to insulate them.

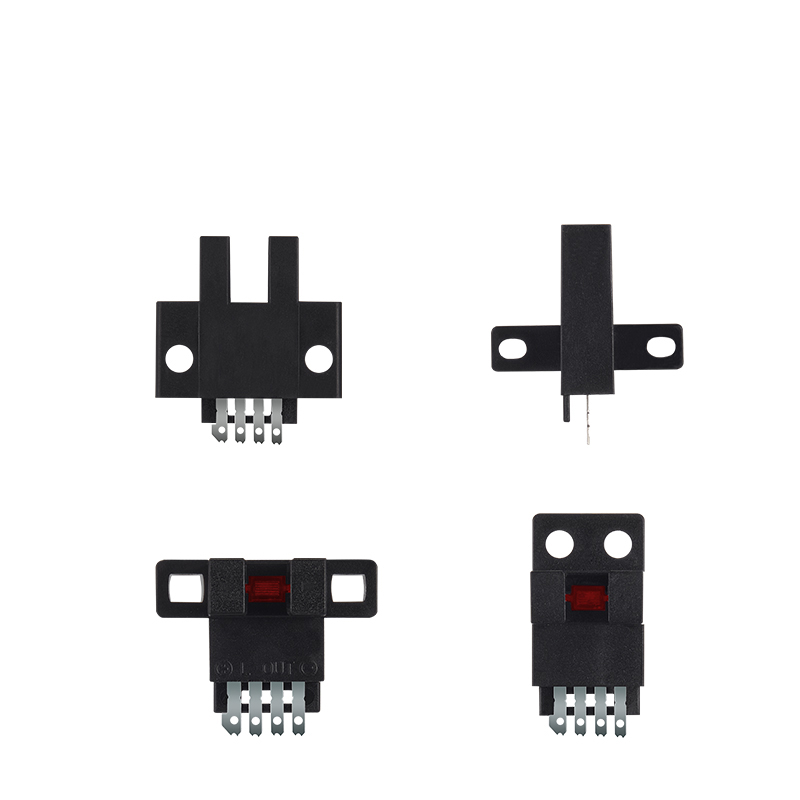

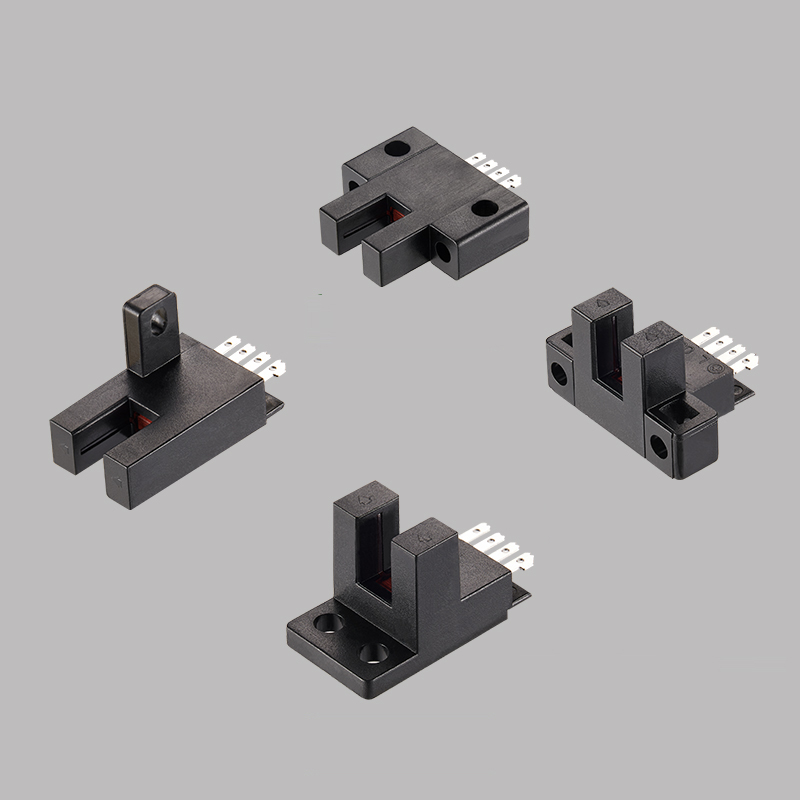

Various models
There are many types, with up to 4 shapes, from which you can choose the model that meets your installation conditions.

Easy connection
The simple connection type eliminates all the troubles such as soldering and insulation that were required in the past, and it is very simple to achieve quick connection.
Product options with black output and pink switching are available - QH.

High speed response
The response frequency is 3KHZ high-speed response.
Kind
| Kind | K type | L type | T type | Y type |
| Detection distance | 5mm (slot width) | |||
| Standard test substance | Opaque objects above 0.8*1.2mm | |||
| Repeat accuracy | 0.03mm or less | |||
| Output mode | NPN open collector | |||
| switch mode | L.on (light entry action)/D.on (light blocking action) switchable | |||
| indicator light | The light turns off when an object is detected and turns on when no object is detected. | |||
| response frequency | 3KHz | |||
| light source | Infrared light | |||
| Working voltage | 5-24VDC | |||
| Residual voltage | Below 1V (when load current is 100mA) | |||
| Current consumption | ≤8mA | |||
| protection circuit | Surge protection, reverse polarity protection | |||
| ambient light | Light receiving surface illumination: incandescent lamp: below 1000lux | |||
| ambient temperature | Working: -25℃~+55℃ Storage: -30℃~+80℃, no freezing | |||
| ambient humidity | When working: 5%~85%RH When storing: 5%~95%RH, no condensation | |||
| Withstand voltage | AC, 1000V for 1 minute, between all power connection terminals and housing | |||
| Vibration resistant | Frequency 10Hz~2,000Hz, double amplitude 1.5mm (maximum acceleration 196m/s2) 2 hours in each direction of XYZ | |||
| Insulation resistance | Between all power connection terminals and the shell, more than 20MQ (based on DC250V) | |||
| Protection level | IP50 | |||
| Material | ABS+PC | |||
| Outgoing method | Connector | |||
| Model NPN | UX670 | UX671 | UX672 | UX674 |
| Model PNP | UX670P | UX671P | UX672P | UX674P |
Circuit

DC line 4-wire NPN output

DC line 4-wire PNP output
Overall dimensions (unit: mm)

UX670

UX671

UX672

UX674

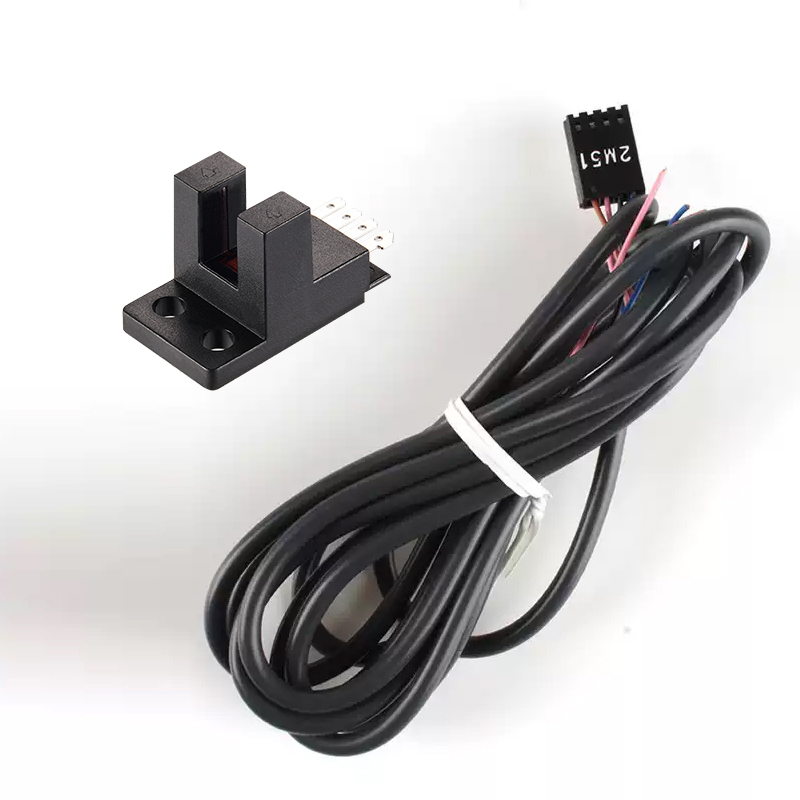

Accessories
UX1006 (default 2m, 1m, 3m, 5m, 7m, 10m available for sale)
UX1010 (default 2m, 1m, 3m, 5m, 7m, 10m available for sale)
