Product Description
Grating displacement sensor products
10 million rebound tests
RS485 communication output, accuracy up to 0.002mm
CMOS grating measurement principle
High-speed reading through CMOS sensor solves temperature and tracking errors

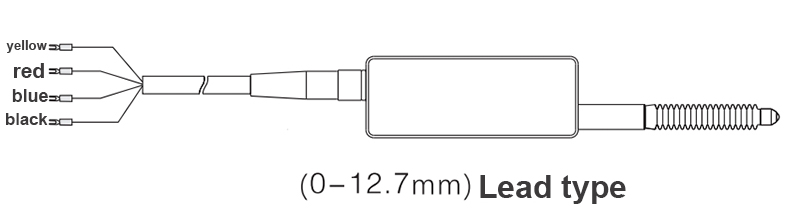

Wiring diagram
| RS485 lead type | |
| Pin number | Function |
| blue | B |
| black | A |
| Yellow | DC 5V (power supply) |
| red | GND(ground) |
Product parameters
| Product name | Model | Measuring range(mm) | Full accuracy | Resolution | Waterproof level |
| Standard grating displacement sensor | MD-LV1050 | 0-12.7 | ≤10μm | 5μm | IP65 |
| MD-LV1010 | ±2μm | 1μm | |||
| MD-LV1005 | ≤2μm | 0.5μm | |||
| Digital display grating displacement sensor | MD-LV1050D | ≤10μm | 5μm | ||
| MD-LV1010D | ±2μm | 1μm | |||
| MD-LV1002D | ≤1.4μm | 0.2μm | |||
| Detection system | Grating measuring system, image sensor | ||||
| Working voltage | DC 5V | ||||
| Working current | <50mA | ||||
| Data update speed | 50ms | ||||
| Lead length | 2m | ||||
Optional special bracket: MD-LVS108

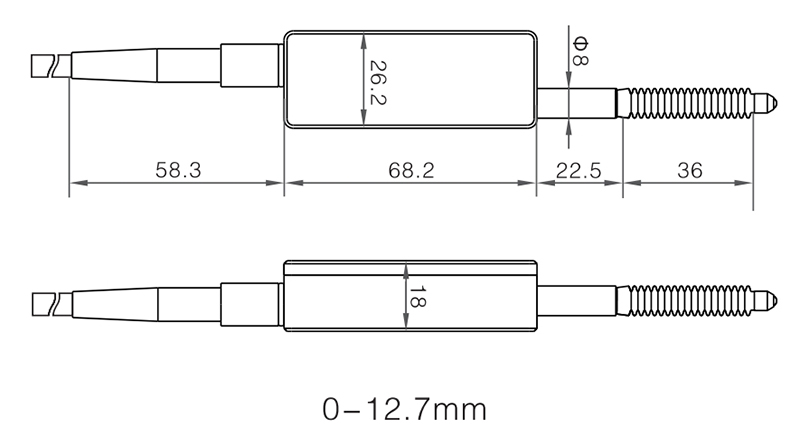

Dimensional drawing
Z00L/S00L/0LOL/0SOLAT-AW

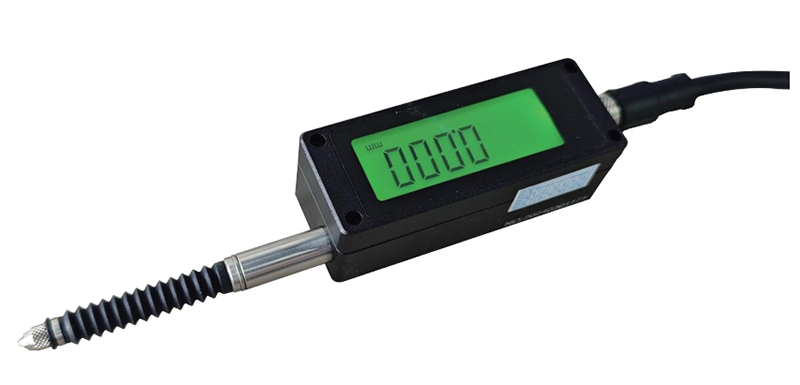

MD-LV1050D/1010D/1005D/1002D
Optional bracket: MD-LVS108
