Product Description

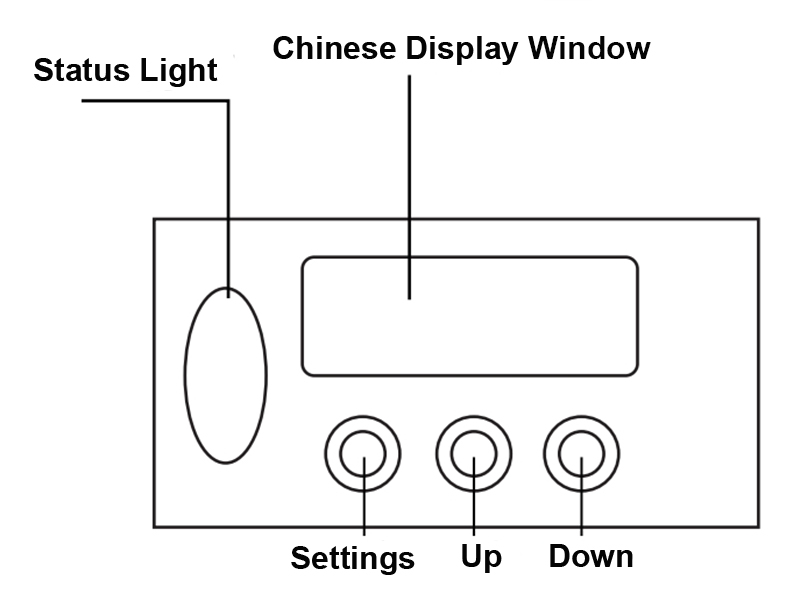

Laser Displacement Sensor Name Of Each Part
Stable detection repeatability 0.1mm
Higher measurement accuracy ±0.1%
Ultra-fast response time up to 1.5ms
Various output modes, pure I/O type/RS-485
Wiring Diagram
Wide range of measurement options
Support NPN/PNP switchable and data
RS485 communication
Full metal shell, sturdy and durable
Small size, small light spot, high precision
| Cable serial number | Function | Outlet wire core color |
| 1 | NPN/PNP | black |
| 2 | Power supply positive | brown |
| 3 | Negative power supply | blue |
| 4 | 485A | Yellow |
| 5 | 485B | green |
Product parameters
| Project/Model/Kind | Micro Laser Displacement Sensor | |||
| NPN/PNP+RS-485 | MD-LX250 | MD-LX1000 | MD-LX3000 | |
| Measure center distance | 250mm | 1000mm | 3000mm | |
| Measuring range | 60-400mm | 0-1500mm | 0-4000mm | |
| Repeat accuracy | 600um | 1.5mm | 1.5mm | |
| Measurement accuracy | ±0.3%F.S. | |||
| response frequency | 1.5ms/5ms/15ms switchable | |||
| light source | Red laser (655nm) | |||
| Spot diameter | φ1mm | |||
| Supply voltage | 12V~24V DC±10%/pulsation P-P 10% or less | |||
| Light source power | <1W | |||
| output | Transistor output: NPN/PNP can be set, communication output: RS-485 | |||
| Output action | Switchable between ON when light is received/ON when no light is received | |||
| Short circuit protection | equipped | |||
| Environmental resistance | protective structure | IP67 | ||
| working temperature | -10°C~+50°C (be careful not to condense or freeze) | |||
| ambient temperature | -20°C~+60°C | |||
| ambient humidity | 35%RH~85%RH | |||
| ambient illumination | Incandescent lamp: light receiving surface illumination below 3000lux | |||
| Withstand voltage | 1000V/AC/50Hz/60Hz 60s | |||
| Insulation resistance | ≥50MΩ(500V DC) | |||
| Vibration resistant | Frequency 10~50Hz, double amplitude 15mm, 2 hours in each direction of XYZ (when not powered on) | |||
| Impact resistant | Acceleration 500m/s2 (approximately 50G) 3 times on each side of XYZ (when not powered on) | |||
| Material | Housing: Die-cast zinc Window: Glass | |||
| Link method | 2m cable | |||
(Note 1) Unspecified measurement conditions refer to the condition where the ambient temperature is equal to +23°C. (Note 2) This product is a laser product and should be used after powering on and preheating for ten minutes.

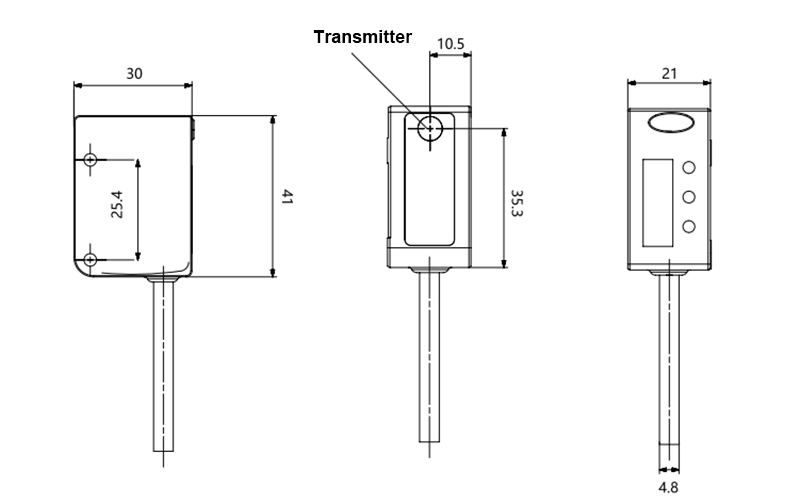

Dimensional drawing (unit: mm)
