Product Description
Product Introduction

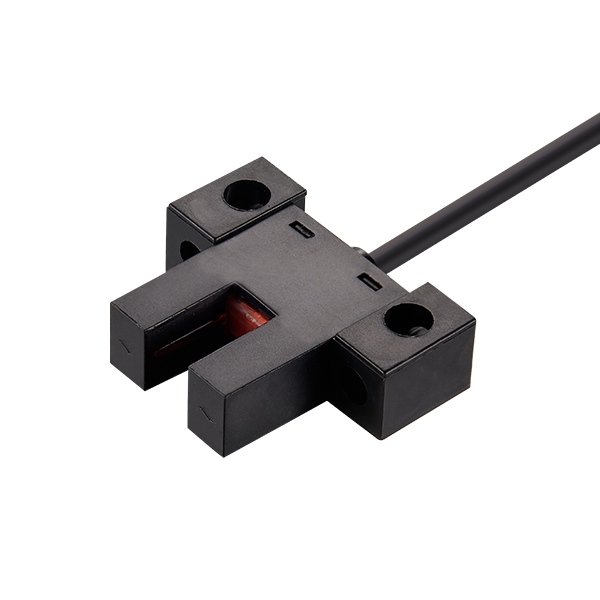

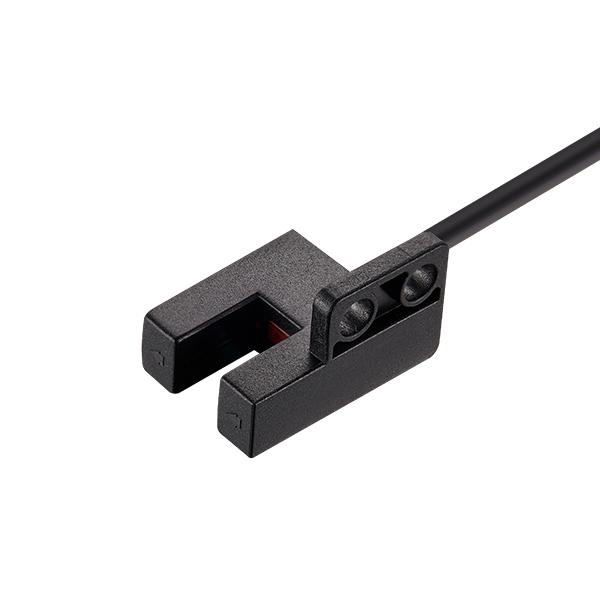

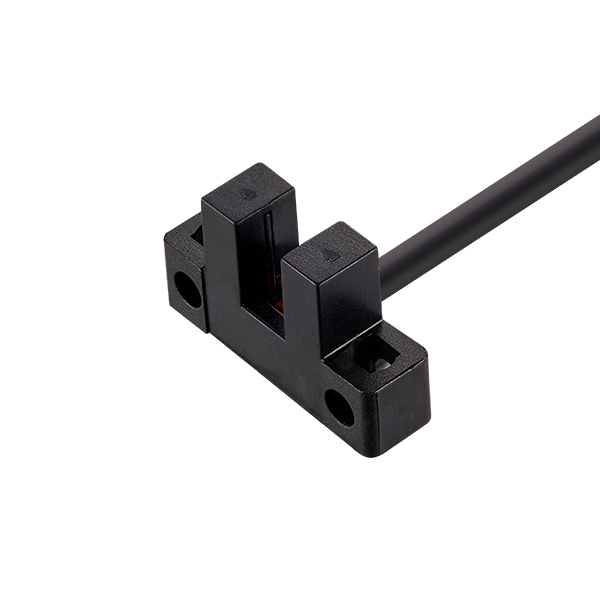

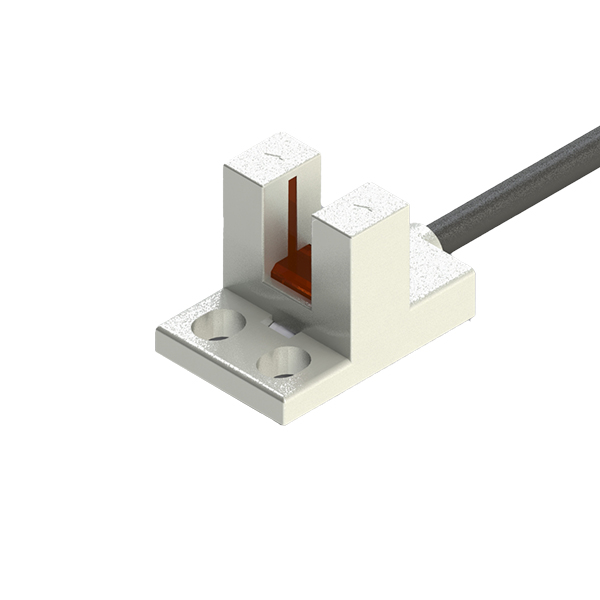

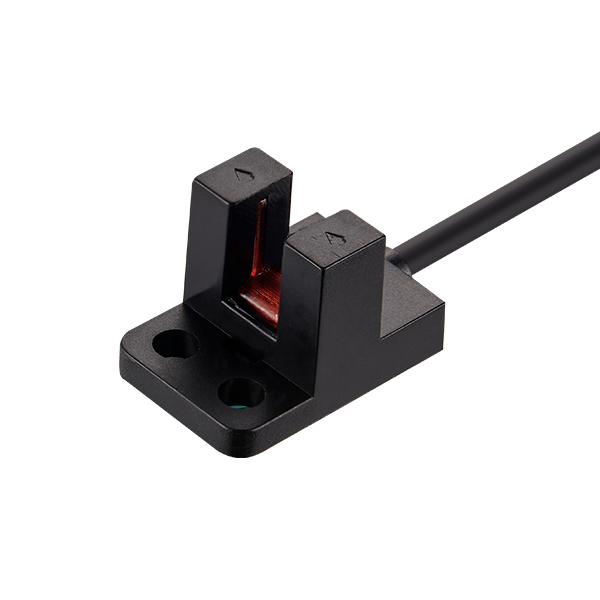

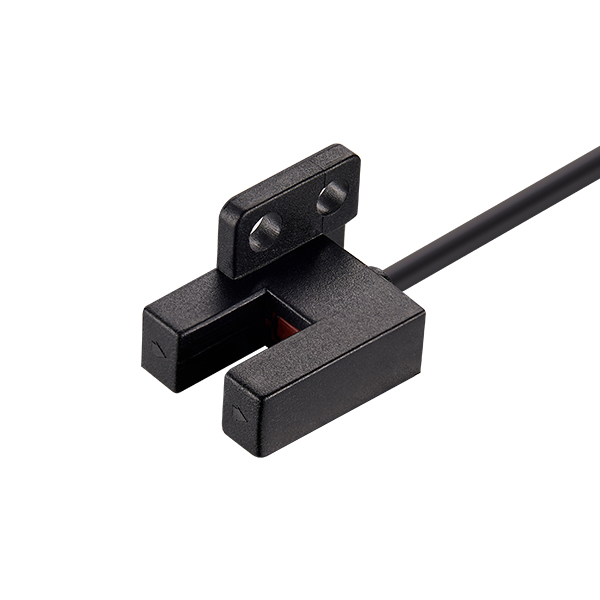

The Compact 45 Series Slot Sensor is a high-performance photoelectric sensor designed for precise object detection in industrial automation applications. With its compact form factor, robust construction, and advanced optical technology, this sensor ensures reliable operation in demanding environments. It is widely used in packaging, material handling, assembly lines, and robotics for detecting presence, position, and counting of objects.

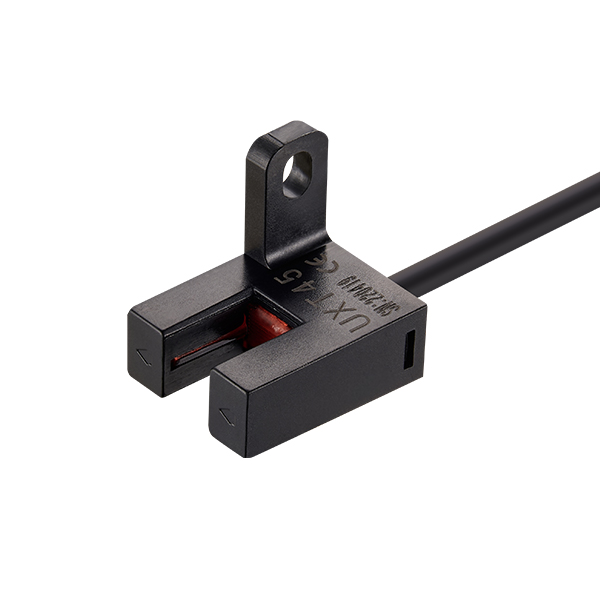

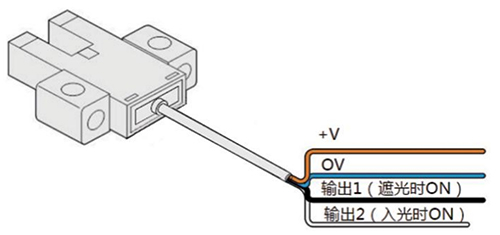

Equipped with two independent outputs
All models are equipped with two independent outputs - ON when light enters and ON when blocked, which can meet different output requirements according to different places of use.
Note: Only the used cables need to be connected (ON when light comes in or ON when blocked). For unused output lines, be sure to insulate them.

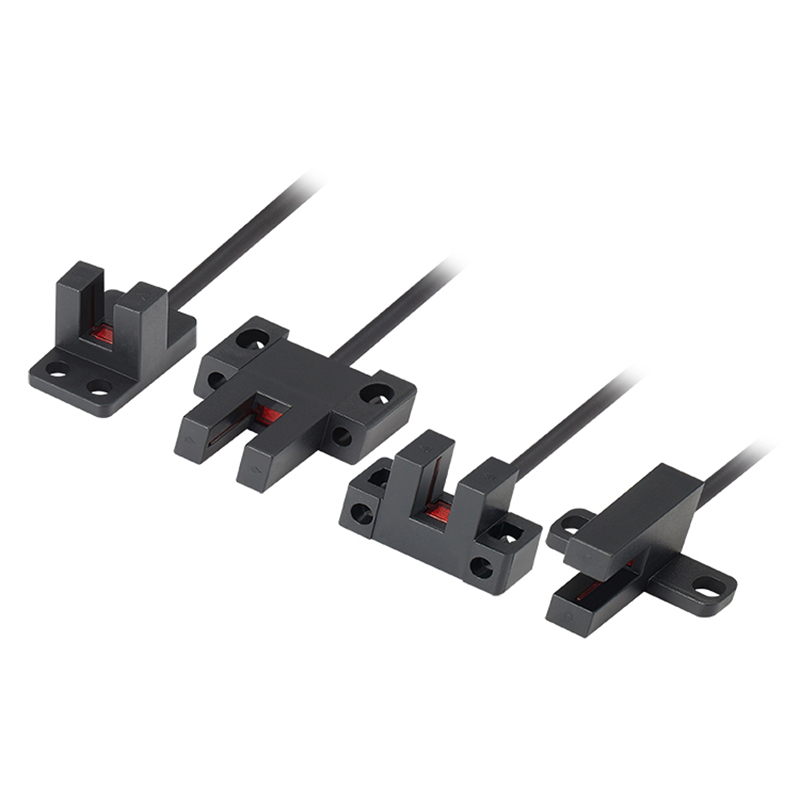

Various models

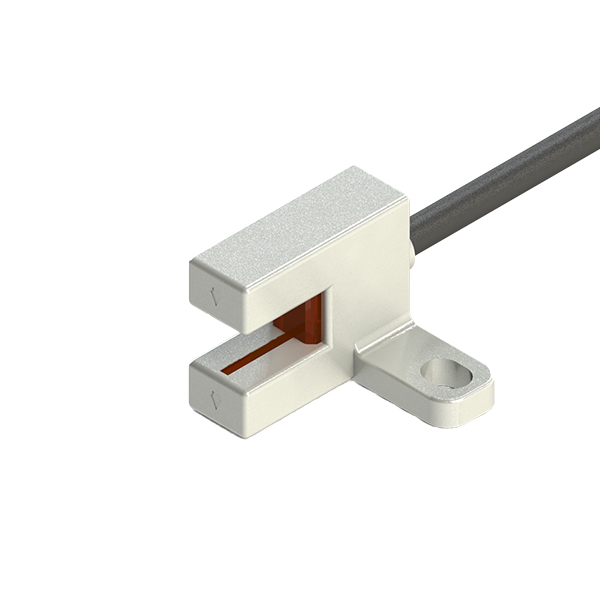

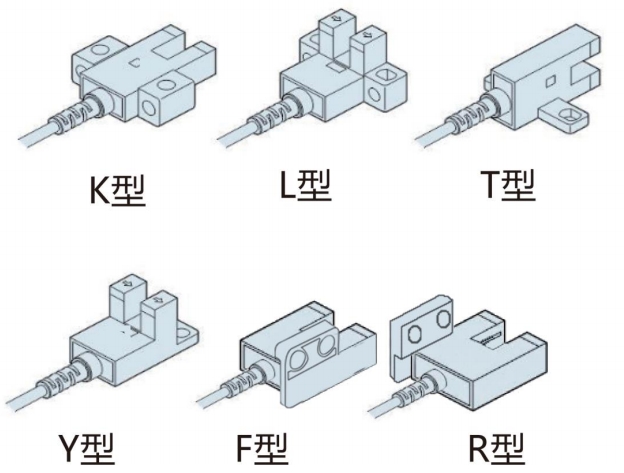

There are many types, with up to 6 shapes, from which you can choose the model that meets your installation conditions.
Wire lead out
Standard 2M flexible wire, the wire length can be customized.
Optional bending resistant drag chain line-GR.
Optional white normally open and black normally closed-SX.
Wide voltage range
The power supply voltage range is 5~24VDC.
High speed response
The response frequency is 3KHZ high-speed response.
Type
| Kind | K type | L type | T type | Y type | Type F | Type R |
| Detection distance | 5mm (slot width) | |||||
| Standard test substance | Opaque objects above 0.8*1.2mm | |||||
| Repeat accuracy | 0.03mm or less | |||||
| Output mode | NPN open collector | |||||
| Switch mode | L.on (light entry action)/D.on (light blocking action) switchable | |||||
| Indicator light | The light turns off when an object is detected and turns on when no object is detected. | |||||
| Response frequency | 3KHz | |||||
| Light source | Infrared light | |||||
| Working voltage | 5-24VDC | |||||
| Residual voltage | Below 1V (when load current is 100mA) | |||||
| Current consumption | ≤8mA | |||||
| Protection Circuit | Surge protection, reverse polarity protection | |||||
| Ambient Light | Light receiving surface illumination: incandescent lamp: below 1000lux | |||||
| Ambient Temperature | Working: -25℃~+55℃ Storage: -30℃~+80℃, no freezing | |||||
| Ambient Humidity | When working: 5%~85%RH When storing: 5%~95%RH, no condensation | |||||
| Withstand Voltage | AC, 1000V for 1 minute, between all power connection terminals and housing | |||||
| Vibration Resistant | Frequency 10Hz~2,000Hz, double amplitude 1.5mm (maximum acceleration 196m/s2) 2 hours in each direction of XYZ | |||||
| Insulation Resistance | Between all power connection terminals and the shell, more than 20MQ (based on DC250V) | |||||
| Protection Level | IP50 | |||||
| Material | ABS+PC | |||||
| Outgoing method | 2M4 core cable | |||||
| Model NPN | UXK45 | UXL45 | UXT45 | UXY45 | UXF45 | UXR45 |
| Model PNP | UXK45P | UXL45P | UXT45P | UXY45P | UXF45P | UXR45P |
Product Features
Ultra-Compact Design – Space-saving for tight installations.
High Precision Detection – Accurate sensing of small objects.
Durable Construction – Resistant to dust, vibration, and ambient light interference.
Easy Installation & Alignment – Simplified setup with visible beam indicators.
Multiple Output Options – NPN, PNP, or relay configurations available.
Wide Voltage Range – Compatible with 10-30V DC power supplies.
Technical Specifications
| Parameters | Specifications |
| Model Series | Compact 45 |
| Detection Method | Through-beam (Slot Type) |
| Sensing Distance | Up to 5mm (adjustable) |
| Light Source | Infrared LED (850nm) |
| Response Time | ≤1ms |
| Power Supply | 10-30V DC |
| Current Consumption | ≤20mA |
| Output Type | NPN/PNP (NO/NC selectable) |
| Protection Rating | IP67 (Dustproof & Waterproof) |
| Operating Temperature | -25°C to +55°C |
| Housing Material | ABS Plastic / Stainless Steel (optional) |
Electrical Characteristics
NPN Output: Open-collector, max. 100mA
PNP Output: Sourcing, max. 100mA
Short-Circuit & Reverse Polarity Protection
Mechanical Dimensions
Slot Width: 5mm standard (customizable)
Housing Size: 45mm (L) × 20mm (W) × 15mm (H)
Mounting: M3 screws or bracket mounting
Working Principle
The Compact 45 Series operates on the through-beam (slot-type) sensing principle, where an emitter and receiver are housed in a single U-shaped unit. When an object passes through the slot, it interrupts the infrared beam, triggering the sensor output.
Detection Modes
Light-ON Mode: Output activates when beam is uninterrupted.
Dark-ON Mode: Output activates when beam is blocked.
The sensor’s high-speed response (≤1ms) ensures reliable detection even for fast-moving objects.
Circuit

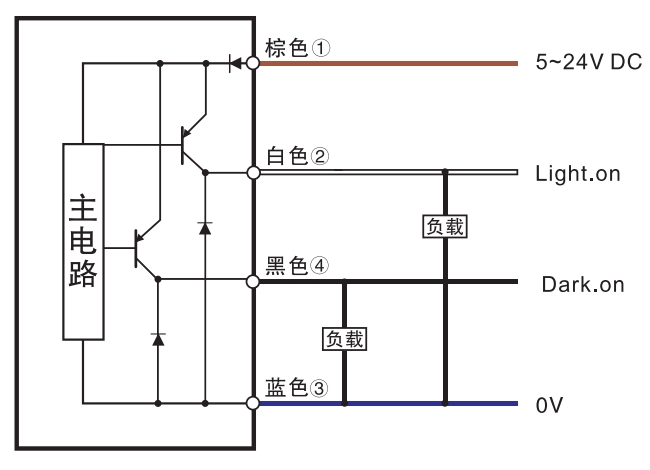

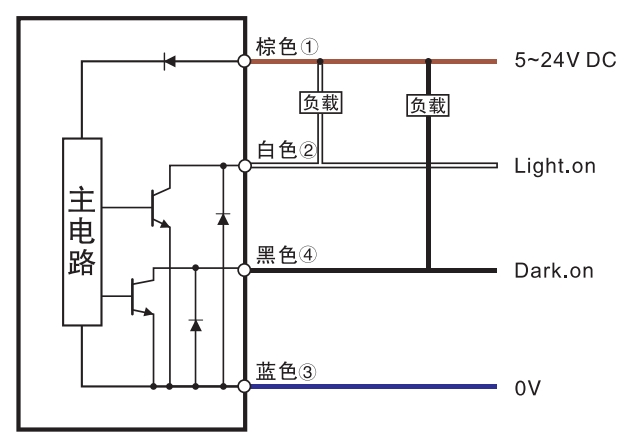

DC line 4-wire NPN output
DC line 4-wire PNP output
