Product Description
Product Introduction

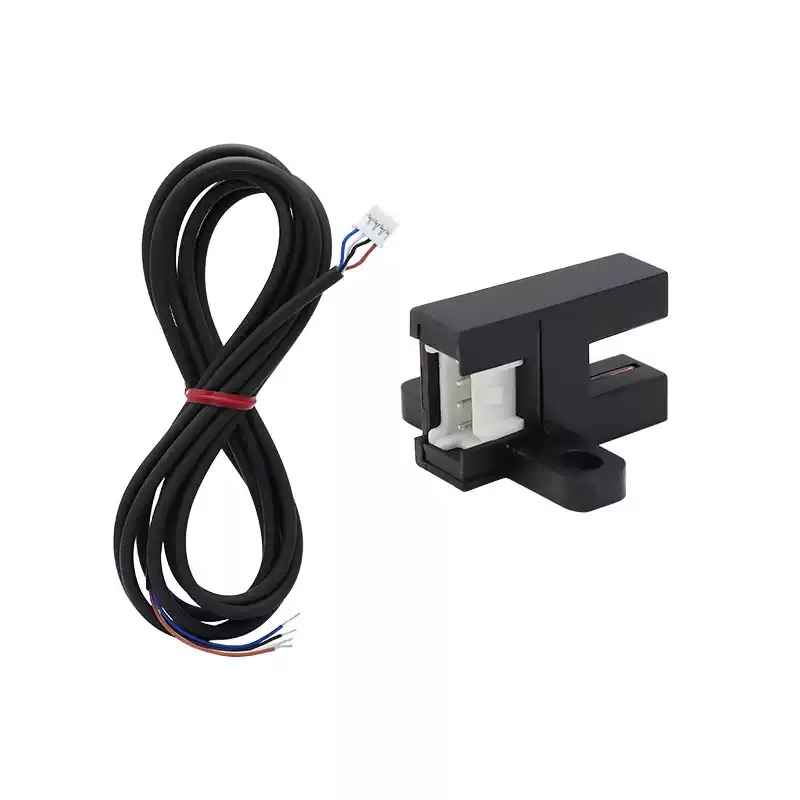

65 Series Plug-In Slot Sensor is a high-precision and high-reliability photoelectric sensor designed for applications such as automation control, industrial inspection and material recognition. The sensor adopts an advanced slot-type structure design for easy installation and maintenance, and has excellent anti-interference ability and environmental adaptability, and is suitable for a variety of harsh industrial environments.
Features
High-precision detection: Use high-quality photoelectric components to ensure high detection accuracy and fast response speed.

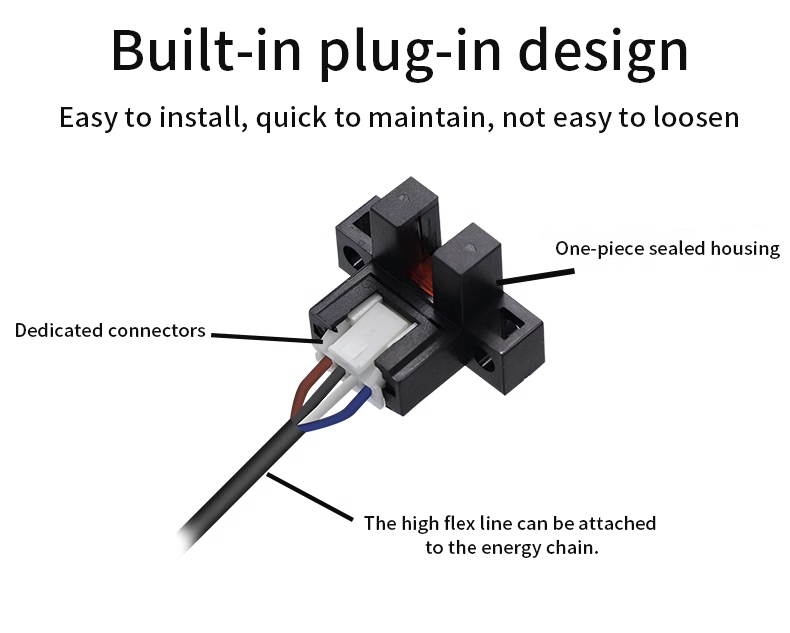

Slot structure: modular design for easy installation, disassembly and maintenance.

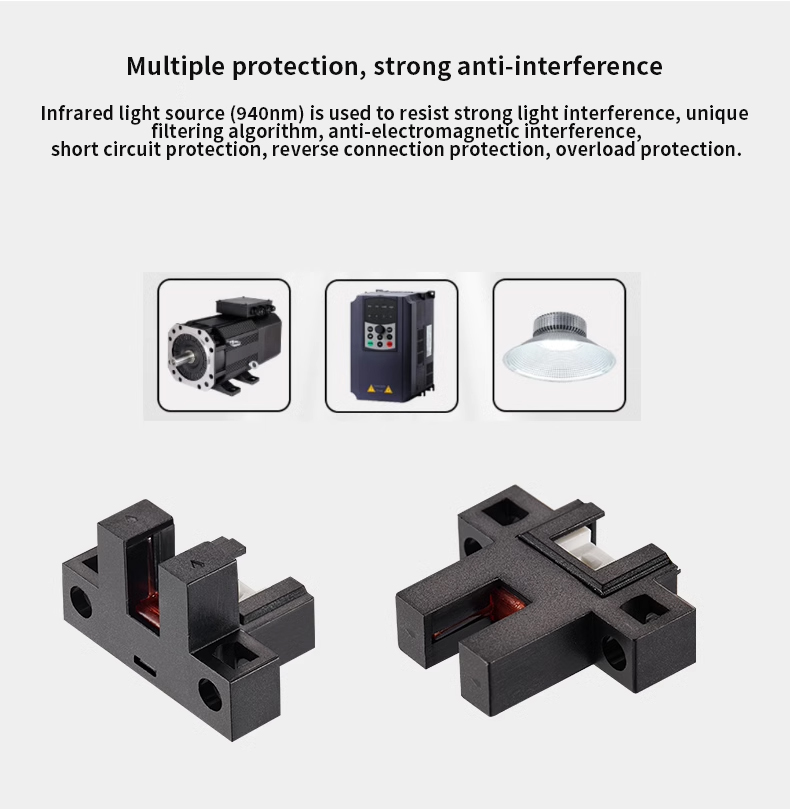

Strong anti-interference ability: built-in filtering circuit, effectively suppressing electromagnetic interference (EMI) and radio frequency interference (RFI).
Wide voltage input: Supports multiple voltage inputs (such as DC 12-24V) to meet different industrial needs.
IP67 protection level: dust-proof and waterproof, suitable for harsh industrial environments.
Multiple output modes: optional NPN, PNP, relay or analog output to meet different control needs.




Product structure and working principle
Structural Design
The 65 Series Plug-In Slot Sensor is designed in a compact design, with the main components including:
Emitter: Built-in infrared LED or laser diode to emit detection beams.
Receiver: Uses a high-sensitivity phototransistor or photodiode to receive reflected or transmitted light signals.
Slot type mounting mechanism: Easy to quickly install on the equipment or production line, supporting rail or screw fixation.

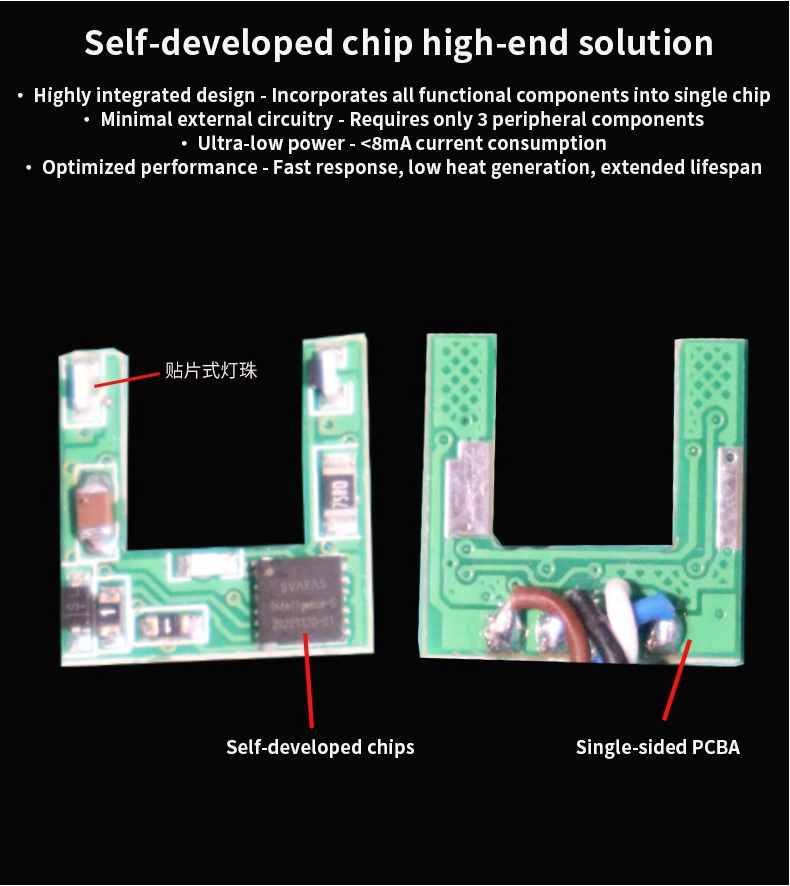

Signal processing circuit: Integrated amplification, filtering and logic control functions to ensure stable output.

How it works
The sensor is based on the principle of photoelectric detection, and its main working modes include:
Through-Beam: The transmitting end and the receiving end are separated to detect whether the object blocks the light beam.
Retroreflective: The transmitting end and the receiving end are integrated in the same module, and objects are detected through a mirror.
Diffuse: Directly detects the light reflected by an object, suitable for close-range detection.
When the measured object enters the detection area, the sensor outputs a switching signal or an analog signal according to the optical signal changes, realizing automatic control.

Technical parameters
| Parameters | Specifications |
| Detection method | surfing/reflective/diffuse reflection |
| Detection distance | 0-5m (optical type), 0-2m (reflective type), 0-1m (diffuse type) |
| Light source type | infrared LED/laser |
| Response time | ≤1ms |
| Output method | NPN/PNP/relay/analog quantity (4-20mA/0-10V) |
| Supply voltage | DC 12-24V (±10%) |
| Protection level | IP67 |
| Operating temperature | -25°C ~ +70°C |
| Housing material | ABS engineering plastic/metal housing (optional) |
| Connection method | M12 connector/wire lead |

Product Advantages
Easy to install: slot-style design, supports quick replacement and reduce downtime.
High stability: Use industrial-grade components to ensure long-term and stable operation.
Strong adaptability: Wide temperature working range, suitable for high temperature, high humidity and dust environments.
Multiple output options: meet different control system needs, compatible with PLC, microcontroller and other equipment.
Low-power design: energy-saving and efficient, reducing operating costs.

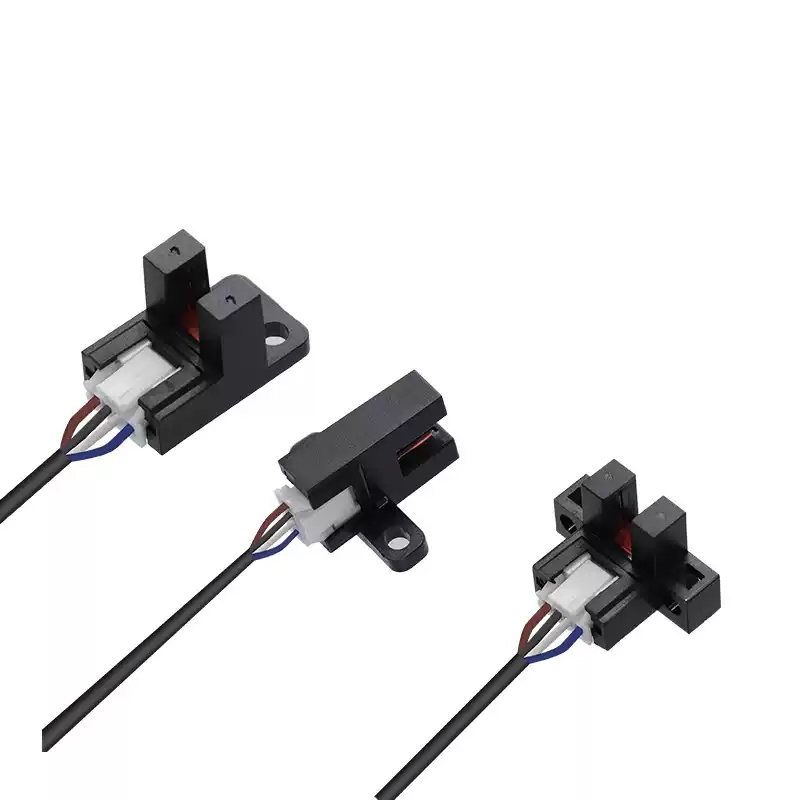

Comes with connector cable

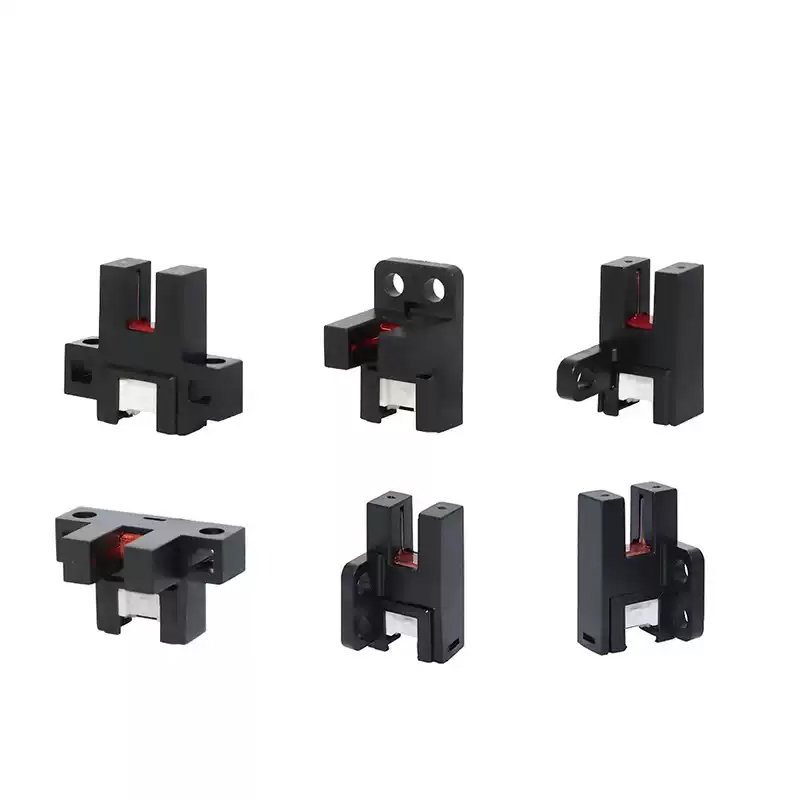

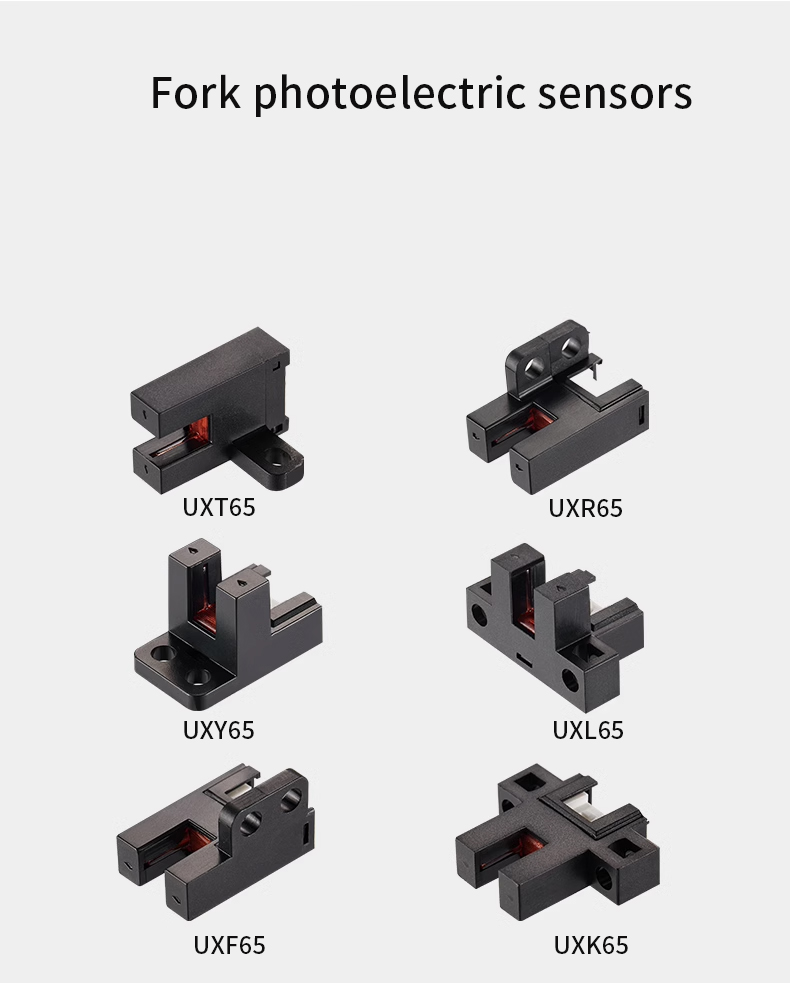

Various models

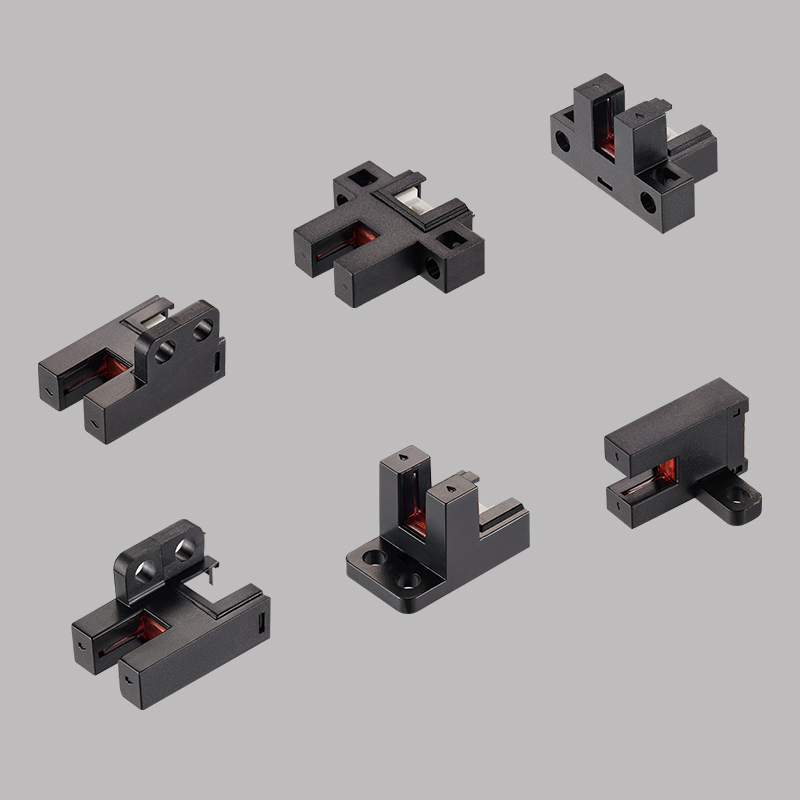

Rich variety, up to 6 shapes, you can choose the model that meets your installation conditions


Wire lead out
Optional UX1008 connecting cable.
Optional UX1008-GR high flexible cable.
Wide voltage range
Power supply voltage range 5~24VDC:
High speed response
The response frequency is 3KHZ high-speed response.
Kind
| Kind | K type | L type | T type | Y type | Type F | Type R |
| Detection distance | 5mm (slot width) | |||||
| Standard test substance | 0.8mmx1.2mm opaque body | |||||
| Repeat accuracy | 0.03mm or less | |||||
| Output mode | NPN open collector | |||||
| switch mode | L.on (light entry action)/D.on (light blocking action) switchable | |||||
| indicator light | Orange LED (lights up when light enters) | |||||
| response frequency | 3KHz | |||||
| light source | Infrared light | |||||
| Working voltage | 5V DC~24VDC±10% Pulsation P-P10% or less | |||||
| Residual voltage | Below 1V (when load current is 100mA) | |||||
| Current consumption | ≤8mA | |||||
| protective structure | IP50(IEC) | |||||
| ambient light | Light receiving surface illumination: incandescent lamp: below 1000lux | |||||
| ambient temperature | -25℃~+55℃ (note no condensation or freezing), storage: -30℃~+80℃ | |||||
| ambient humidity | 5%RH~85%RH, storage: 5%RH~95%RH | |||||
| Withstand voltage | AC1,000V 1 minute between all power connection terminals and housing | |||||
| Vibration resistant | Frequency 10Hz~2,000Hz, double amplitude 1.5mm (maximum acceleration 196m/s2) 2 hours in each direction of XYZ | |||||
| Insulation resistance | Between all power connection terminals and the shell, more than 20MΩ, based on DC250V high resistance meter | |||||
| Protection level | IP50(IEC) | |||||
| Material | ABS+PC | |||||
| Outgoing method | Connector | |||||
| Model NPN | UXK65 | UXL65 | UXT65 | UXY65 | UXF65 | UXR65 |
| Model PNP | UXK65P | UXL65P | UXT65P | UXY65P | UXF65P | UXR65P |

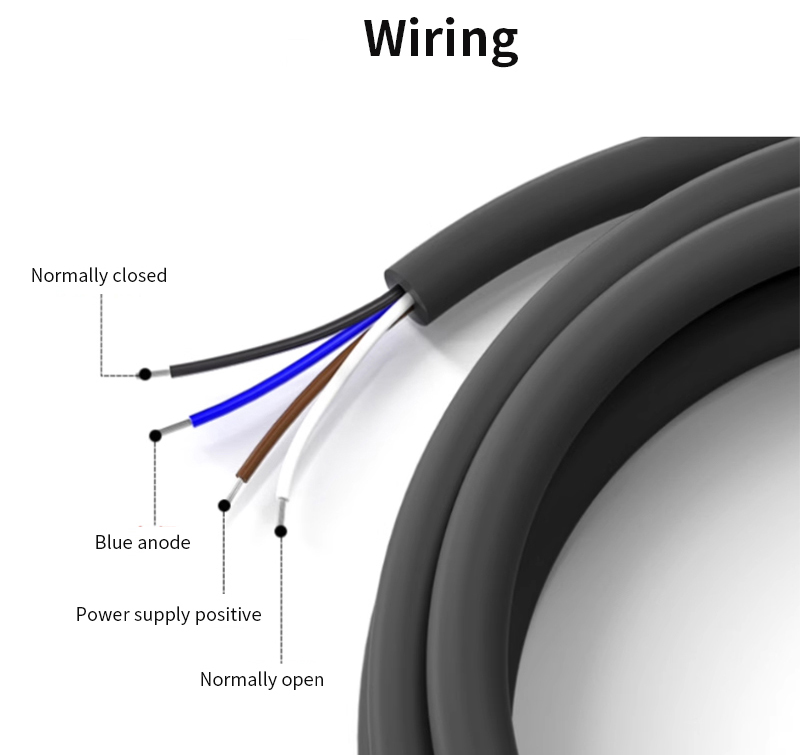

Circuit

DC line 4-wire NPN output

DC line 4-wire PNP output

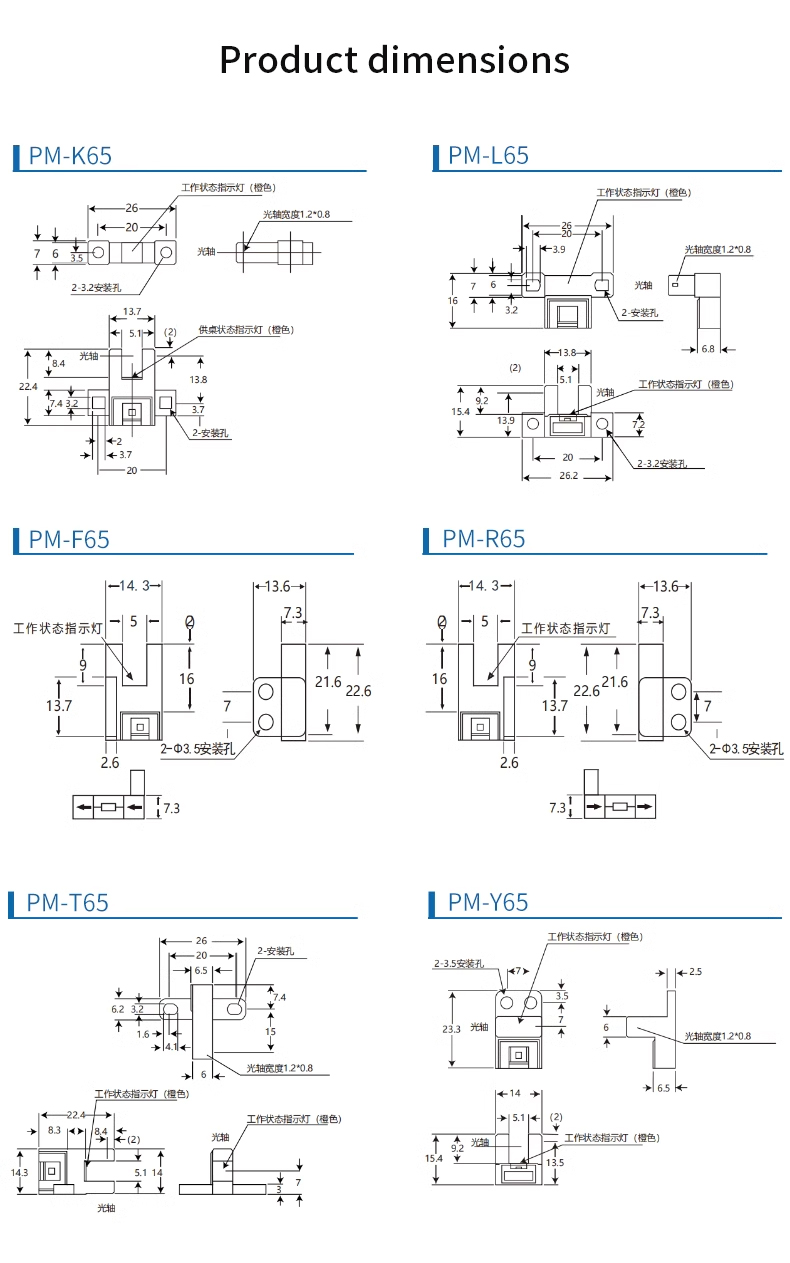

Dimensional drawing

UXK65

UXL65

UXT65

UXY65

UXF65

UXR65
Accessories

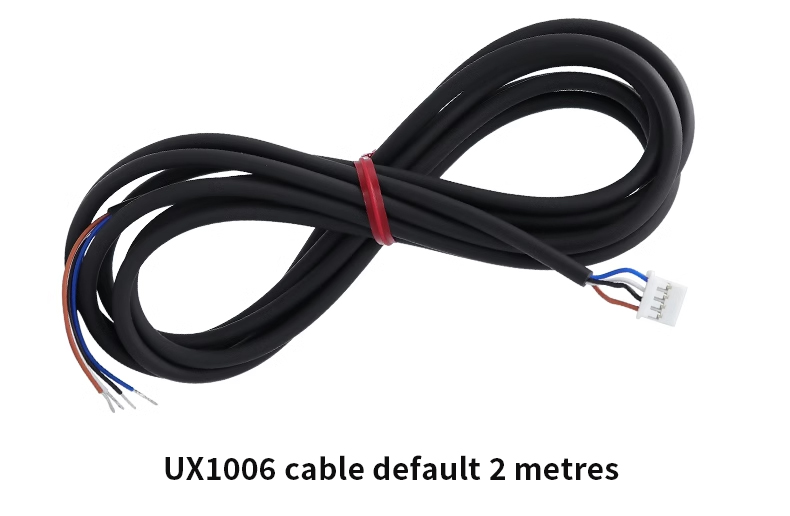

UX1008 (default 2m, 1m, 3m, 5m, 7m, 10m available for sale)
