Product Description
Product Introduction

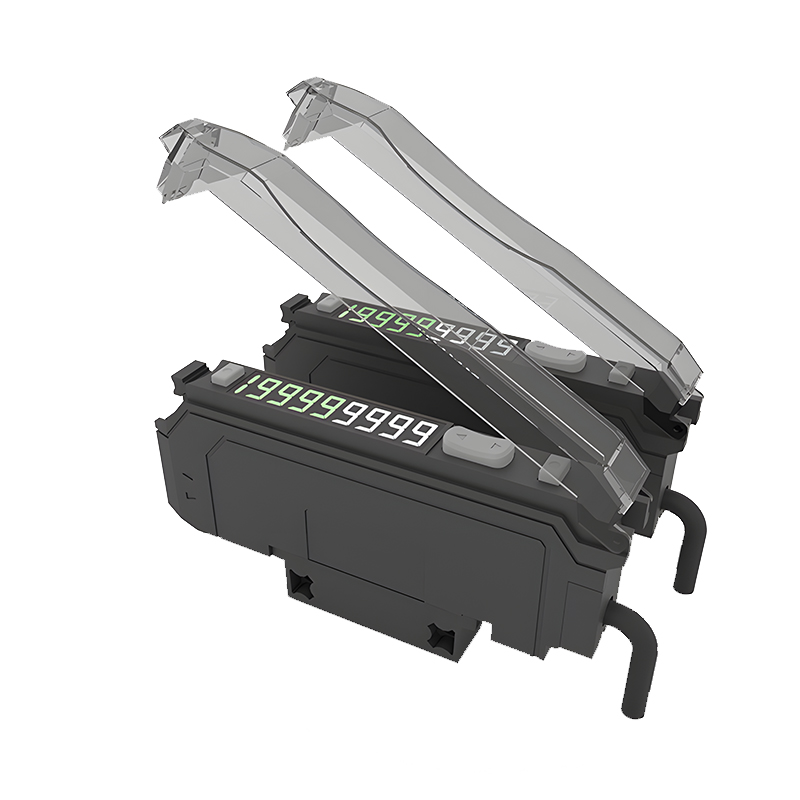

The Multifunctional Even Digital Fiber Optic Sensor is an advanced optical sensing device designed to provide precise detection and monitoring across a wide range of industrial and automation applications. Utilizing the cutting-edge technology of fiber optics, this sensor offers exceptional flexibility, high sensitivity, and outstanding accuracy in detecting various physical parameters. Whether it's measuring object presence, position, temperature, or other environmental changes, the Multifunctional Even Digital Fiber Optic Sensor delivers reliable and real-time feedback with minimal maintenance.
Thanks to its ability to offer digital outputs, it ensures seamless integration with modern control systems such as PLCs, SCADA systems, and automated machinery, making it the ideal choice for industries where precision and real-time performance are critical.
Product Features
Multifunctional Capability
The Multifunctional Even Digital Fiber Optic Sensor is designed to handle multiple detection tasks simultaneously. It can detect a range of parameters, including the presence of objects, changes in temperature, and vibrations, all in one compact unit.
Digital Output for Seamless Integration
Unlike analog sensors, this sensor features a digital output that ensures clear and reliable signals, making it easy to interface with modern control systems like PLCs and microcontrollers. The digital signal minimizes errors caused by signal degradation, offering stable performance over time.
High Sensitivity and Accuracy
Thanks to fiber optic technology, this sensor provides highly accurate and sensitive detection of even small variations. It delivers precise and real-time feedback, making it suitable for high-precision tasks in industries like manufacturing, process control, and quality assurance.
Non-Contact Sensing
The sensor operates on the principle of light transmission through fiber optic cables, making it non-contact. This eliminates mechanical wear and tear, enhances sensor longevity, and reduces maintenance needs in environments where direct contact with objects might lead to contamination or wear.
Flexible Fiber Optic Design
The fiber optic cables are flexible and lightweight, making them easy to route through tight spaces or along moving parts. This allows the sensor to be integrated into hard-to-reach areas or used in dynamic systems without losing detection reliability.
Immunity to Electromagnetic Interference (EMI)
A significant advantage of fiber optic sensors is their immunity to electromagnetic interference. This makes them ideal for use in environments where electrical noise could affect traditional electronic sensors, such as in industrial plants, power stations, and high-tech laboratories.
Long Detection Range
The sensor offers a long detection range, ensuring it can operate effectively over extended distances, providing flexibility in large-scale industrial systems or applications that require remote sensing.
Durable and Robust
Built to withstand challenging industrial environments, the Multifunctional Even Digital Fiber Optic Sensor is resistant to moisture, dust, and extreme temperatures. Its rugged design ensures reliable operation even in harsh conditions, such as factories, outdoor settings, and environments with high vibration levels.
Applications
The Multifunctional Even Digital Fiber Optic Sensor is used in a broad spectrum of applications across various industries:
Industrial Automation: In automation systems, it is used for position sensing, object detection, and part counting on conveyor belts or robotic arms. The sensor provides real-time feedback, enhancing the precision of automated manufacturing lines.
Material Handling: Applied in material handling systems to detect the presence or absence of objects, ensuring smooth operations and preventing system jams or misalignments in packaging and sorting systems.
Quality Control and Inspection: The sensor is ideal for detecting minute defects, misalignments, or inconsistencies in products, making it an essential tool in automated inspection systems for quality assurance.
Environmental Monitoring: Used in applications such as air quality control, humidity monitoring, or detecting temperature changes, providing real-time data for environmental analysis.
Medical and Laboratory Applications: Its ability to provide non-contact, precise measurements makes it perfect for use in sensitive laboratory environments or medical equipment where contamination must be minimized.
Automotive Industry: Used in automotive manufacturing for ensuring the correct placement of components, verifying production line parameters, or detecting the presence of parts in high-speed assembly processes.
FAQ
How does the Multifunctional Even Digital Fiber Optic Sensor work?
The sensor uses fiber optic cables to transmit light. When an object enters the detection area or there is a change in environmental conditions, it affects the light transmission, which is detected by the sensor. The sensor then outputs a digital signal indicating the presence, absence, or specific condition of the detected object or parameter.
Can the sensor detect more than one type of parameter?
Yes, the Multifunctional Even Digital Fiber Optic Sensor is designed to detect a wide range of parameters, including the presence of objects, changes in temperature, and variations in environmental conditions. This makes it highly versatile for multiple applications in a single system.
Is the sensor suitable for use in harsh environments?
Yes, the sensor is built with durability in mind. It is resistant to moisture, dust, high temperatures, and vibrations, making it ideal for use in challenging industrial settings like factories, process plants, and outdoor environments.
What is the benefit of using a digital output over an analog one?
A digital output ensures more reliable and stable signals, reducing the likelihood of signal degradation over time. This is especially beneficial in applications where accurate and real-time data is essential, as it eliminates issues like noise interference and provides more precise control.
Can the sensor be integrated into existing automated systems?
Yes, the Multifunctional Even Digital Fiber Optic Sensor is designed to be easily integrated into modern control systems, such as PLCs and SCADA systems. Its digital output and flexible installation options make it compatible with a wide variety of industrial setups.
Is the sensor energy-efficient?
Yes, fiber optic sensors, including the Multifunctional Even Digital Fiber Optic Sensor, typically consume low power while providing high performance. This makes them an energy-efficient choice for applications that require continuous monitoring.
Can the sensor detect small or subtle changes?
Yes, the sensor is highly sensitive and capable of detecting even the smallest changes in the environment, such as small temperature shifts or the presence of minute objects, making it ideal for precision tasks.
Intelligent adjustment, simple and stable
Accuracy of detection and ease of use for customers. Long-term stable brightness, built-in brightness compensation algorithm reduces device maintenance.
Set up with just one click
It can be set with just one click. Press the SET button when there is no target detection object. Press the SET button again when there is a target detection object to automatically set the best position.

Dust cover
For easier viewing the dust cover is placed close to the monitor.

The amount of light emitted is adjustable
When detecting at close range or detecting transparent objects or small objects, when the light level is saturated, the sensor's light emission amount can be adjusted without changing the response time to achieve stable detection. This function can also be used to easily set up the detection that previously required changing the response time and optical fiber.
Easy-to-use Chinese display screen
There are two options: Chinese display and dual digital display.

Outgoing method
Equipped with wire lead-out type (two meters of bend-resistant cable is standard), and connector type is available.
Function introduction
Brightness value compensation
The automatic maintenance function detects when the brightness drops due to dirt or other reasons and restores the sensor to its original display state. This function eliminates the influence of the surrounding environment, allowing the sensor to continuously perform high-precision detection.

Four detection methods
It is equipped with four detection modes: standard detection mode 1ms, high-speed 250us, ultra-high-speed detection mode 25us and high-precision detection mode 16ms. It can also detect small workpieces moving at high speed.

3 types of timers are available
Equipped with on delay, off delay and ONE SHOT timer. (Timer time is about 1ms~10s)

ON delay: Delay output ON state after detection.
OFF delay: When the detection time is short and detection cannot be performed through PLC. Maintain the output ON state.
SHOT jog: Even if the detected object is of uneven size, it can be output regularly.
window detection
You can set the upper and lower reference values and turn the incident light amount ON/OFF within the range.
(Detecting ICs in the tray)

Light value adjustment
When you want to modify the incident light intensity target (light intensity value adjustment level), you can set the light intensity value adjustment level (100-9999, 1 scale, the initial value is 9999.)
Can save current consumption
After setting, if there is no key operation for about 20 seconds, the digital display will go out and the power consumption will be controlled below about 600mW. (720mW or less when the light is on)
Application examples

Check whether there is an IC on the tray

Inspection of small workpieces passing through at high speed

Detection in harsh environments with oil pollution
Kind
| Kind | NPN/PNP integrated type |
| LED digital display | EX-HD12 |
| Chinese and English LCD display | EX-HD22 |
Input/output circuit

Kind
| Project | Model | Universal dual digital display | Chinese dual digital display |
| EX-HD12 | EX-HD22 | ||
| light source | 640nm red modulated light | ||
| Supply voltage | DC12-24V±10% fluctuation (p-p) less than 10% | ||
| Power consumption | ≤30mA | ||
| Output mode | NPN open collector/PNP open collector | ||
| switch mode | L.on (light input action)/D.on (light blocking action) can be set | ||
| response time | P-025μs; P-1:100μs; P-2:400μs; P-3:800μs; P-4:3.2ms | ||
| Timer function | On delay, off delay, ONE SHOT timer | ||
| Timing range | 1~9999ms | ||
| Practical functions | Parameter initialization/key lock/threshold two points, fully automatic and manual setting | ||
| Advanced features | Automatic compensation of light emission and received light, differential detection, area detection | ||
| ambient temperature | -20°C~+50C | ||
| ambient humidity | 35~85%RH | ||
| ambient light | Daylight: below 30000LX; Auto-incandescent lamp: below 20000LX | ||
| protection circuit | Surge protection circuit, short circuit protection, reverse polarity protection | ||
| Vibration (durability) | 10~55Hz, 1.5mm double amplitude, up to 2h in each direction of X, Y and Z | ||
| Impact (durability) | 500m/s² double amplitude, 10 times in each direction of X, Y and Z | ||
| Link method | Lead lead type (standard 2m) | ||
| Material | Shell: PBT Cover: PC | ||
Dimensional drawing (unit: mm)

Universal dual digital display optical fiber amplifier
Adopting the domestic advanced ARM architecture 32-bit M0 core chip; 48M main frequency high-speed response, meeting the needs of on-site applications such as vibrating plates, packaging, and rapid sorting; excellent operability and functionality, high-definition LED dual digital display, and subtle changes can be grasped. Millions of amplifiers have been shipped in total, with stable performance, controllable costs and fast delivery.

Kind
| Kind | NPN type | PNP type |
| Economical | EX-NA11 | EX-NA11P |
| Simple dual digital display | EX-HD08 | EX-HDO8P |
| photosensitive amplifier | EX-HD09 | EX-HDO9P |
| Universal dual digital display | EX-HD10 | EX-HD10P |
Input/output circuit

Kind
| Project | Model | Economical | Simple dual digital display | photosensitive amplifier | Universal dual digital display |
| EX-NA11 | EX-HD08 | EX-HD09 | EX-HD10 | ||
| light source | 640nm red modulated light | ||||
| Supply voltage | DC12-24V±10% fluctuation (p-p) less than 10% | ||||
| Power consumption | ≤30mA | ||||
| Output mode | NPN open collector/PNP open collector | ||||
| switch mode | L.on (light input action)/D.on (light blocking action) can be set | ||||
| response time | P-0 25μs; P-1: 100μs; P-2: 400μs, P-3: 800μs, P-4: 3.2ms | ||||
| Timer function | On delay, off delay, ONE SHOT timer | ||||
| Timing range | 1~9999ms | ||||
| Practical functions | Parameter initialization/key lock/threshold two points, fully automatic and manual setting | ||||
| Advanced features | Automatic compensation of light emission and received light, area detection | ||||
| ambient temperature | -20°C~+50°C | ||||
| ambient humidity | 35-85%RH | ||||
| ambient light | Daylight: below 30000LX; incandescent lamp: below 20000LX | ||||
| protection circuit | Surge protection circuit, short circuit protection, reverse polarity protection | ||||
| Vibration (durability) | 10~55Hz, 1.5mm double amplitude, up to 2h in each direction of X, Y and Z | ||||
| Impact (durability) | 500m/s² double amplitude, 10 times in each direction of X, Y and Z | ||||
| Link method | Lead lead type (standard 2m) | ||||
| Material | Shell: PBT Cover: PC | ||||
Dimensional drawing (unit: mm)
